Unit · AXIAL-PISTON PUMP
AA10VO45LA7DS/53R-VUC12N00'BASIC'*GR902449517
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45LA7DS/53R-VUC12N00'BASIC'*G, material number R902449517. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off from 91 to 160 bar, separate flow control hydraulic beginning of control.D (LA7DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on SAE B; 2-hole ISO 3019-1 (SAE) (C). Working port: at bottom, on opposite side, metric fastening thread (12). Through drive: without through drive (N00).
- Number
- R902449517
- Type code
- AA10VO45LA7DS/53R-VUC12N00'BASIC'*G
- Group
- A10VO 45
- Edition
- 06/2020

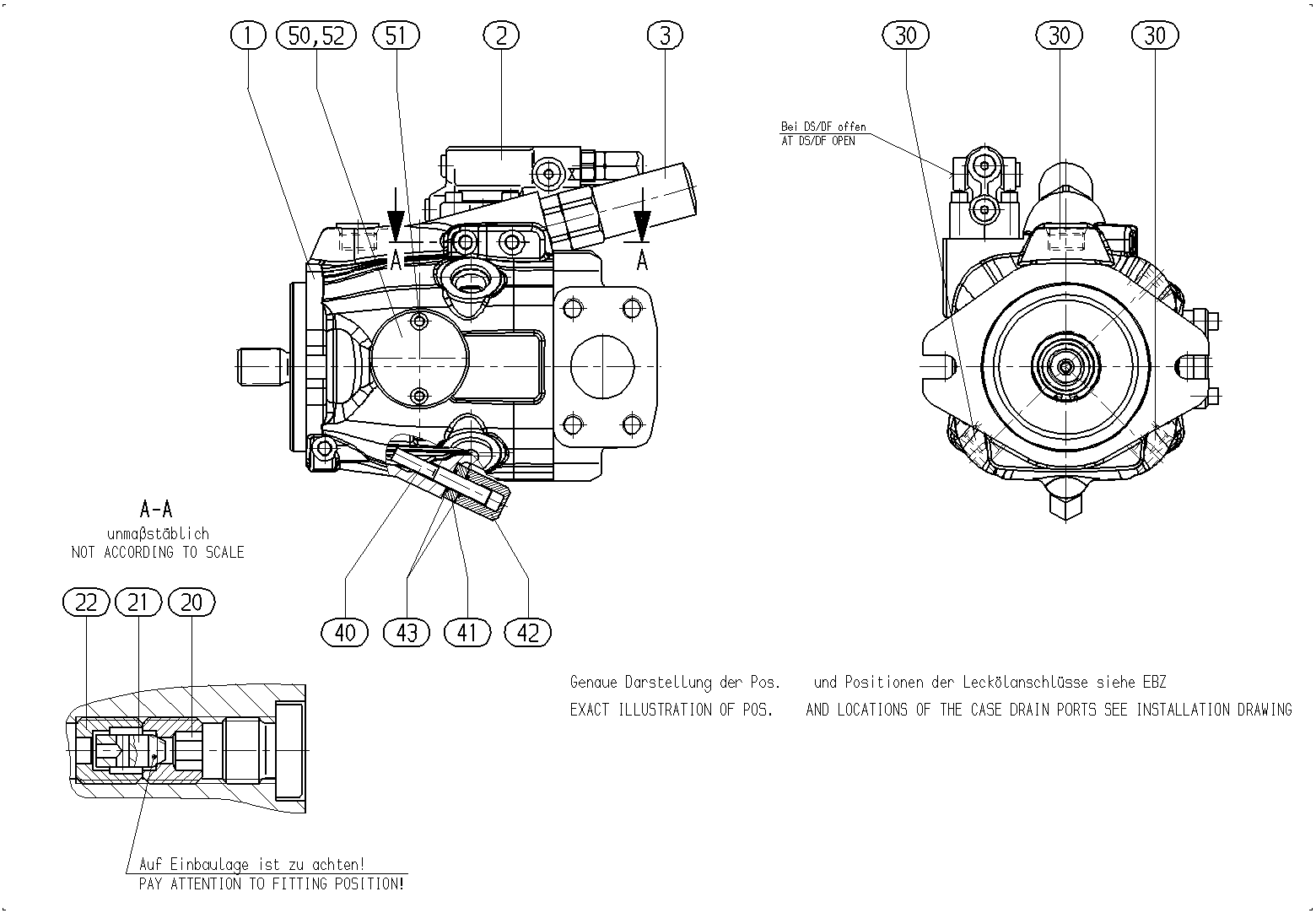

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902449532 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451616 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902471237 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R909400264 | THROTTLE SCREW | 1 | ||
| R909425868 | THROTTLE PIN | 1 | ||
| R909400263 | THROTTLE SCREW | 1 | ||
| R910967343 | SCREW PLUG | 3 | ||
| R910947854 | STOP SCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910804886 | O-RING | 2 | ||
| R910967428 | COVER | 1 | ||
| R910109304 | SOCKET HEAD CAP SCREW | 2 | ||
| R910756601 | O-RING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 45 | 45 |
| Control devices | pressure cut-off from 91 to 160 bar, separate flow control hydraulic beginning of control.D | LA7DS |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on SAE B; 2-hole ISO 3019-1 (SAE) | C |
| Working port | at bottom, on opposite side, metric fastening thread | 12 |
| Through drive | Without through drive | N00 |
