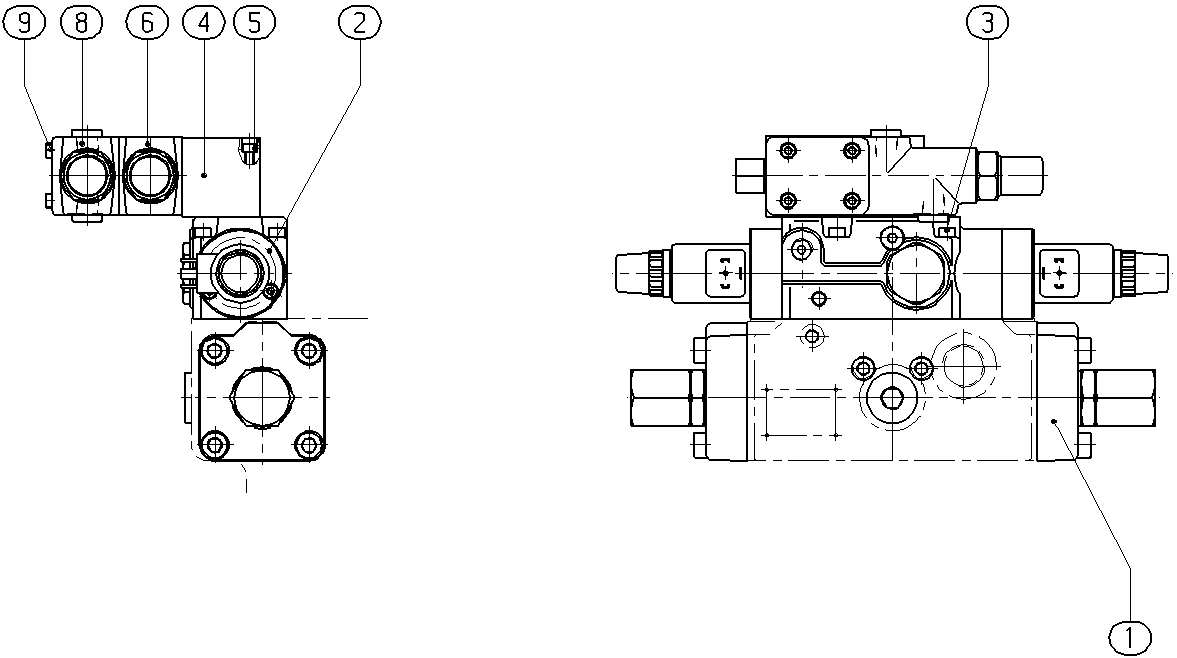

Unit · CONTROL
V A4VSG 71 EPD /11R-VR902454858
Control Bosch Rexroth series A4VSO, type code VA4VSG71EPD/11R-V, material number R902454858. Nominal size: NG 71. Axial piston unit: swashplate design (A4VSG).
- Number
- R902454858
- Type code
- V A4VSG 71 EPD /11R-V
- Group
- A4VSG 71
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902445505 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902436745 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910387053 | SOCKET HEAD CAP SCREW | 4 | ||
| R910979316 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910989471 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910989308 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910799998 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 71 | 71 |
| Series | Series 1, index 1 | 11 |
