Unit · AXIAL-PISTON PUMP

AK A10VSO140 DR /31R-PPB12N00 -S2457R902464289

Axial piston pump Bosch Rexroth series A10VSO, type code AKA10VSO140DR/31R-PPB12N00-S2457, material number R902464289. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 2457.

Number: R902464289
Type code: AK A10VSO140 DR /31R-PPB12N00 -S2457
Group: A10VSO 140
Edition: 06/2020

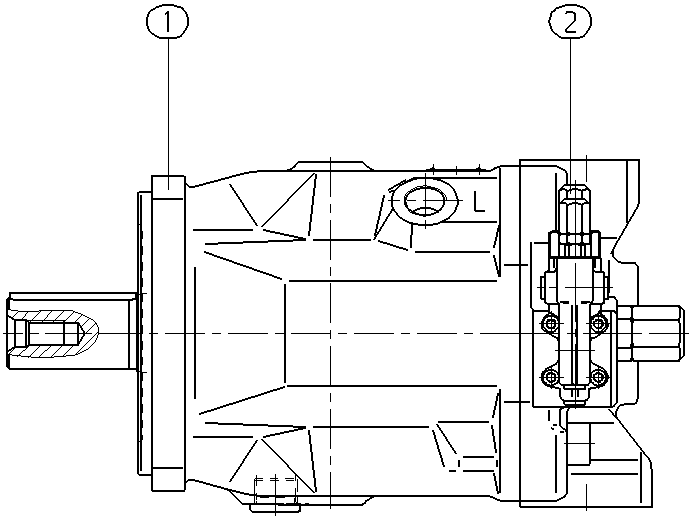

AK A10VSO140 DR /31R-PPB12N00 -S2457 — Drawing

Pos.	Number	Name	Qty	Add to inquiry
	R902464182	BASE UNIT Assembly parts list →L	1
	R902539709	CONTROL VALVE Assembly parts list →L	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar	A10VS
Operating mode	Pump, open circuit	O
Size (NG)	140	140
Control device	Pressure controller hydraulic	DR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid	P
Drive shaft	Parallel keyed shaft DIN 6885 permissible through-drive torque	P
Working port	SAE flange ports according to ISO 6162, metric fastening thread laterally opposite	12
Through drive	Without through drive	N00

Parameters from the type code
