Unit · AXIAL-PISTON PUMP

A A10VSO140 DR /31R-PPB12N00 -SO904R910994691

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO140DR/31R-PPB12N00-SO904, material number R910994691. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: NBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluid (P). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 904.

Number
R910994691
Type code
A A10VSO140 DR /31R-PPB12N00 -SO904
Group
A10VSO 140
Edition
06/2020

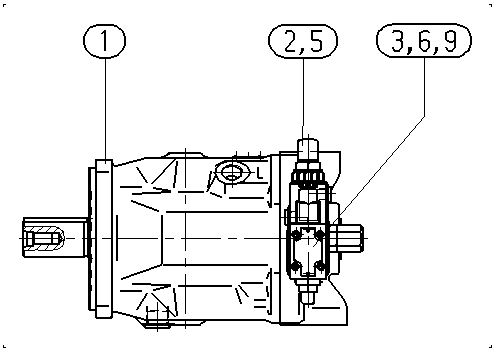

A A10VSO140 DR /31R-PPB12N00 -SO904 — Drawing
Pos.NumberNameQtyAdd to inquiry
R910918209BASE UNIT Assembly parts list →L1
R910990471CONTROL VALVE Assembly parts list →L1
R910994683DIRECTIONAL SPOOL VALVE1
R910994694INTERMEDIATE PLATE Assembly parts list →L1
R910932366TIE-ROD4
R900176106FEMALE HEX NUT4

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar, maximum pressure 350 barA10VS
Operating modePump, open circuitO
Size (NG)140140
Control devicePressure controller hydraulicDR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialNBR (nitrile rubber) only with use of HFA, HFB, HFC hydraulic fluidP
Drive shaftParallel keyed shaft DIN 6885 permissible through-drive torqueP
Working portSAE flange ports according to ISO 6162, metric fastening thread laterally opposite12
Through driveWithout through driveN00

Other versions 12
