Unit · AXIAL-PISTON PUMP

APA10VO140DFR1/31L-VSD11N00-S2401R902466026

Axial piston pump Bosch Rexroth series A10VO, type code APA10VO140DFR1/31L-VSD11N00-S2401, material number R902466026. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 2401.

Number
R902466026
Type code
APA10VO140DFR1/31L-VSD11N00-S2401
Group
A10VO 140
Edition
07/2020

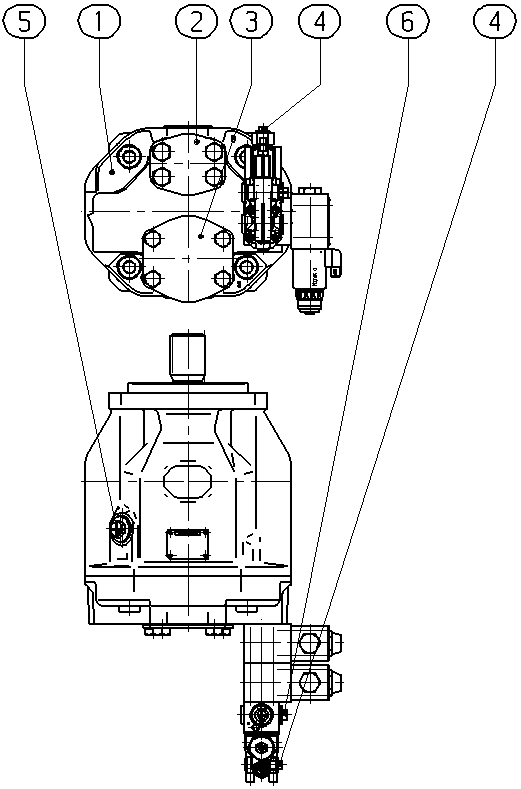

APA10VO140DFR1/31L-VSD11N00-S2401 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902466123AXIAL-PISTON PUMP Assembly parts list →L1
R902400584FLANGE COVER1
R902400594FLANGE COVER1
R902602014SEAL SCREW2
R902603191SEAL SCREW1
R902602010SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)140140
Control deviceWith flow controller X-T plugged, with flushing functionDFR1
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft Counter-clockwiseL
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2/4-holeD
Working portSAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive11
Through driveWithout through driveN00

Other versions 10
