Unit · AXIAL-PISTON PUMP

AP A10V O140 DFR1/31L-VSD11N00 -S1970R992000904

Axial piston pump Bosch Rexroth series A10VO, type code APA10VO140DFR1/31L-VSD11N00-S1970, material number R992000904. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged, with flushing function (DFR1). Direction of rotation: viewed on drive shaft Counter-clockwise (L). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2/4-hole (D). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 1970.

Number: R992000904
Type code: AP A10V O140 DFR1/31L-VSD11N00 -S1970
Group: A10VO 140
Edition: 06/2020

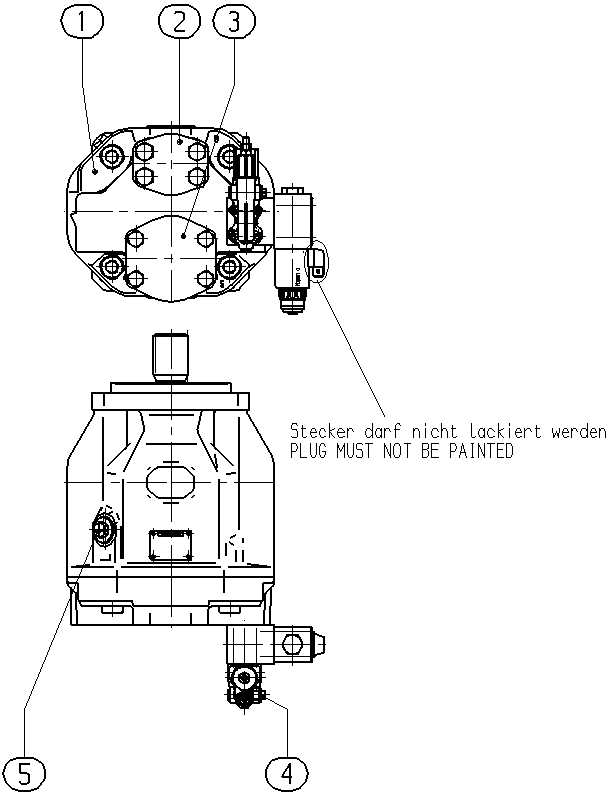

AP A10V O140 DFR1/31L-VSD11N00 -S1970 — Drawing

Number	Name	Qty
R902466122	AXIAL-PISTON PUMP Assembly parts list →L	1
R902400584	FLANGE COVER	1
R902400594	FLANGE COVER	1
R902602014	SEAL SCREW	1
R902603191	SEAL SCREW	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	140	140
Control device	With flow controller X-T plugged, with flushing function	DFR1
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Counter-clockwise	L
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 2/4-hole	D
Working port	SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive	11
Through drive	Without through drive	N00

Parameters from the type code
