Unit · AXIAL-PISTON PUMP
A A10VSO 10 DR /52R-VSA14N00 -SO155R902468290
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10DR/52R-VSA14N00-SO155, material number R902468290. Nominal size: NG 10. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2 2-hole (A). Through drive: without through drive (N00). Special version no. 155.
- Number
- R902468290
- Type code
- A A10VSO 10 DR /52R-VSA14N00 -SO155
- Group
- A10VSO 10
- Edition
- 06/2020

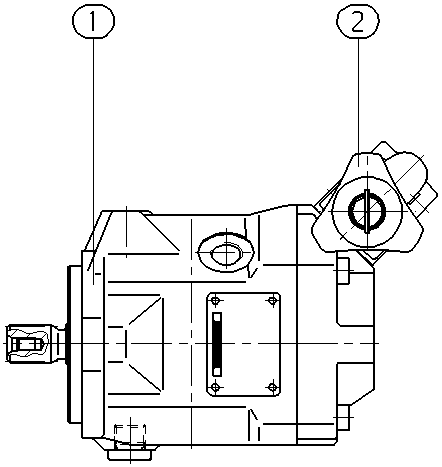

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902459456 | BASE UNIT Assembly parts list →L | 1 | ||
| R902468269 | CONTROL VALVE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 10 | 10 |
| Control device | Pressure controller hydraulic | DR |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft standard shaft ISO 3019-1 | S |
| Mounting flange | ISO 3019-2 2-hole | A |
| Through drive | Without through drive | N00 |
Other versions 9
- R902466631 A A10VSO 10 DR /52R-VSA14N00
- R902542612 A A10VSO 10 DR /52R-VSA14N00
- R902553885 A A10VSO 10 DR /52R-VSA14N00
- R902562499 A A10VSO 10 DR /52R-VSA14N00
- R902474965 A A10VSO 10 DR /52R-VSA14N00 -S1482
- R902461376 A A10VSO 10 DR /52R-VSA14N00 -S2380
- R902468291 A A10VSO 10 DR /52R-VSA14N00 -S2568
- R902512895 A A10VSO 10 DR /52R-VSA14N00 -SO858
- R902517167 A A10VSO 10 DR /52R-VSA14N00 ES1482
