Unit · AXIAL-PISTON PUMP

A A10VSO 10 DR /52R-VSA14N00 ES1482R902517167

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO10DR/52R-VSA14N00ES1482, material number R902517167. Nominal size: NG 10. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft standard shaft ISO 3019-1 (S). Mounting flange: ISO 3019-2 2-hole (A). Through drive: without through drive (N00). Special version no. 1482.

Number: R902517167
Type code: A A10VSO 10 DR /52R-VSA14N00 ES1482
Group: A10VSO 10
Edition: 06/2020

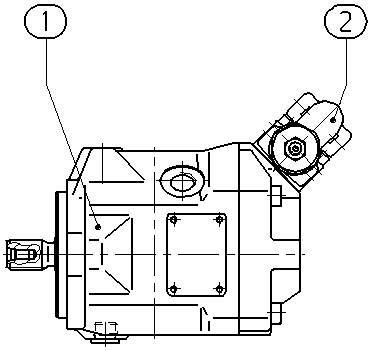

A A10VSO 10 DR /52R-VSA14N00 ES1482 — Drawing

Pos.	Number	Name	Qty
	R902461377	BASE UNIT Assembly parts list →L	1
	R902456118	CONTROL VALVE Assembly parts list →L	1
70	R902602012	SEAL SCREW	1
71	R902602012	SEAL SCREW	1
72	R902602009	SEAL SCREW	1
75	R909830326	NAMEPLATE	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar	A10VS
Operating mode	Pump, open circuit	O
Size (NG)	10	10
Control device	Pressure controller hydraulic	DR
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	Splined shaft standard shaft ISO 3019-1	S
Mounting flange	ISO 3019-2 2-hole	A
Through drive	Without through drive	N00

Parameters from the type code
