Unit · AXIAL-PISTON PUMP
A A10V O110EK2DS/32R-VUC12N00P -SO833R902468817
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO110EK2DS/32R-VUC12N00P-SO833, material number R902468817. Nominal size: NG 110. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure and flow control with controller cut-off (load sensing) U = 24 V (EK2DS). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: reduced diameter, limited suitability for through drive (U). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Connector for solenoids: DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) (P). Special version no. 833.
- Number
- R902468817
- Type code
- A A10V O110EK2DS/32R-VUC12N00P -SO833
- Group
- A10VO 110
- Edition
- 06/2020

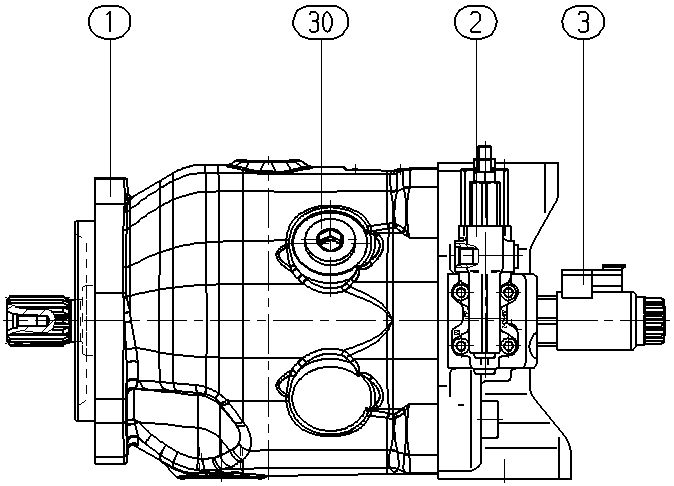

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902468734 | BASE UNIT Assembly parts list →L | 1 | ||
| R902451608 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902450091 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910967351 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 110 | 110 |
| Control device | pressure and flow control with controller cut-off (load sensing) U = 24 V | EK2DS |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | reduced diameter, limited suitability for through drive | U |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | Without through drive | N00 |
| Connector for solenoids | DEUTSCH – molded connector, 2-pin – without suppressor diode (for electric controls) | P |
