Unit · AXIAL-PISTON PUMP
A A10V O 45 DFR1/52R-VSC12N00 -SO526R902472286
Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFR1/52R-VSC12N00-SO526, material number R902472286. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) (A10V). Operating mode: pump, open circuit (O). Control device: with flow controller X-T plugged with flushing function (DFR1). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite (12). Through drive: without through drive (N00). Special version no. 526.
- Number
- R902472286
- Type code
- A A10V O 45 DFR1/52R-VSC12N00 -SO526
- Group
- A10VO 45
- Edition
- 06/2020

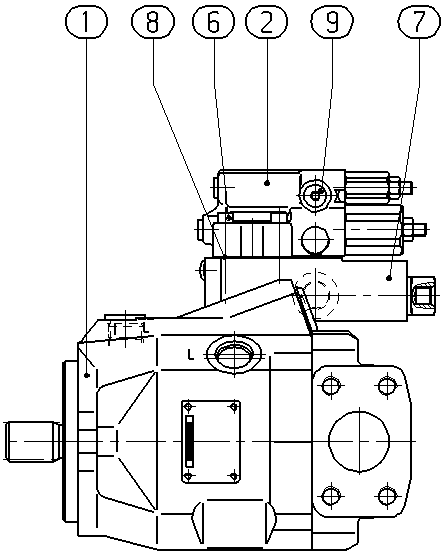

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910996204 | BASE UNIT Assembly parts list →L | 1 | ||
| R902449481 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902650500 | SOCKET HEAD CAP SCREW | 4 | ||
| R902472289 | FLUSHING VALVE Assembly parts list →L | 1 | ||
| R902434482 | SEAL | 1 | ||
| R910764647 | SCREW PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 250 bar (3600 psi), maximum pressure 315 bar (4550 psi) | A10V |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | with flow controller X-T plugged with flushing function | DFR1 |
| Series | Series 5, index 2 | 52 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) 2-hole | C |
| Working port | SAE flange ports according to ISO 6162 metric fastening thread metric for through drive laterally opposite | 12 |
| Through drive | Without through drive | N00 |
Other versions 27
- R902404767 A A10V O 45 DFR1/52R-VSC12N00
- R902410368 A A10V O 45 DFR1/52R-VSC12N00 -S1190
- R902436559 A A10V O 45 DFR1/52R-VSC12N00 -S1388
- R902513602 A A10V O 45 DFR1/52R-VSC12N00 -S1553
- R902495735 A A10V O 45 DFR1/52R-VSC12N00 -S3536
- R902504500 A A10V O 45 DFR1/52R-VSC12N00 -S3880
- R902405400 A A10V O 45 DFR1/52R-VSC12N00 -SO547
- R902573894 A A10V O 45 DFR1/52R-VSC12N00 -SO547
- R902490169 A A10V O 45 DFR1/52R-VSC12N00 -SO615
- R902495842 AH A10V O 45 DFR1/52R-VSC12N00 -S1487
- R902416643 AL A10V O 45 DFR1/52R-VSC12N00
- R902484138 AL A10V O 45 DFR1/52R-VSC12N00
- R902555040 AL A10V O 45 DFR1/52R-VSC12N00
- R902563007 AL A10V O 45 DFR1/52R-VSC12N00
- R902410370 AL A10V O 45 DFR1/52R-VSC12N00 -S1190
- R902436558 AL A10V O 45 DFR1/52R-VSC12N00 -S1388
- R902505689 AL A10V O 45 DFR1/52R-VSC12N00 -S1518
- R902513601 AL A10V O 45 DFR1/52R-VSC12N00 -S1553
- R902495734 AL A10V O 45 DFR1/52R-VSC12N00 -S3536
- R902504498 AL A10V O 45 DFR1/52R-VSC12N00 -S3880
- R902538636 AL A10V O 45 DFR1/52R-VSC12N00 -S4399
- R902472285 AL A10V O 45 DFR1/52R-VSC12N00 -SO526
- R902405399 AL A10V O 45 DFR1/52R-VSC12N00 -SO547
- R902490168 AL A10V O 45 DFR1/52R-VSC12N00 -SO615
- R902536581 AL A10V O 45 DFR1/52R-VSC12N00 -S4327
- R902541954 AL A10V O 45 DFR1/52R-VSC12N00 -SO481
- R902495841 AP A10V O 45 DFR1/52R-VSC12N00 -S1487
