Unit · AXIAL-PISTON PUMP

AL A10V O 74 DFLR/31R-VSC46N00 -S2116R902473149

Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO74DFLR/31R-VSC46N00-S2116, material number R902473149. Nominal size: NG 74. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Through drive: without through drive (N00). Special version no. 2116.

Number
R902473149
Type code
AL A10V O 74 DFLR/31R-VSC46N00 -S2116
Group
A10VO 74
Edition
06/2020

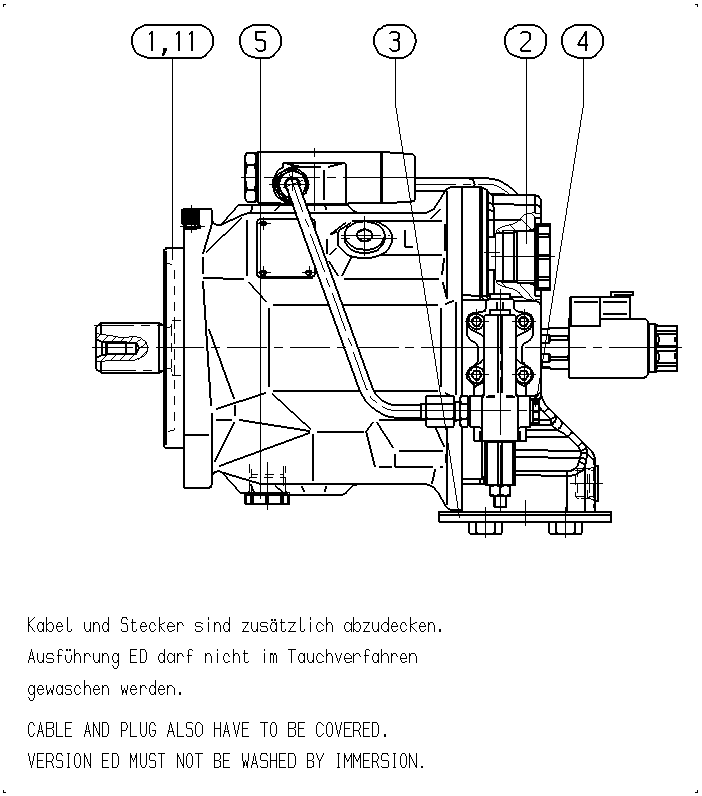

AL A10V O 74 DFLR/31R-VSC46N00 -S2116 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902473229AXIAL-PISTON PUMP Assembly parts list →L1
R902603192SEAL SCREW1
R902433296FLANGE COVER1
R902602014SEAL SCREW1
R902603190SEAL SCREW1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)A10V
Operating modePump, open circuitO
Size (NG)7474
Control devicePressure, flow and power controllerDFLR
SeriesSeries 3, index 131
Direction of rotationViewed on drive shaft ClockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Mounting flangeBased on ISO 3019-1 (SAE) 2-holeC
Through driveWithout through driveN00

Other versions 39
