Unit · AXIAL-PISTON PUMP

A A10V O 45 DFLR/31R-VKC11N00 -S2731R902474224

Axial piston pump Bosch Rexroth series A10VO, type code AA10VO45DFLR/31R-VKC11N00-S2731, material number R902474224. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi) (A10V). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft Clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) 2-hole (C). Working port: SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive (11). Through drive: without through drive (N00). Special version no. 2731.

Number: R902474224
Type code: A A10V O 45 DFLR/31R-VKC11N00 -S2731
Group: A10VO 45
Edition: 06/2020

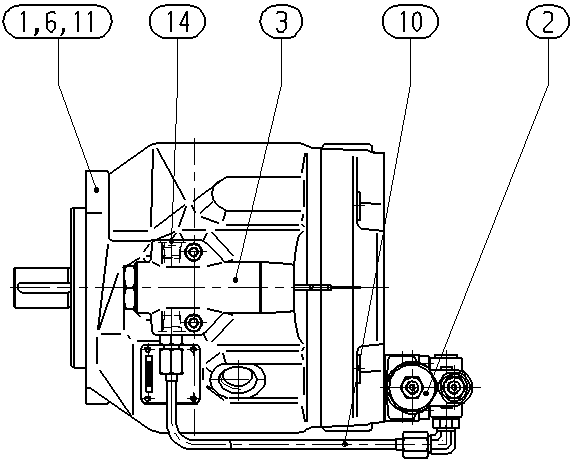

A A10V O 45 DFLR/31R-VKC11N00 -S2731 — Drawing

Number	Name	Qty
R902425121	BASE UNIT Assembly parts list →L	1
R902451761	CONTROL VALVE Assembly parts list →L	1
R902533931	CONTROL VALVE Assembly parts list →L	1
R910969508	SIDE MARKER RING	1
R902425581	PIPING Assembly parts list →L	1
R902474142	POWER DIAGRAM	1
R910764647	SCREW PLUG	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (5100 psi)	A10V
Operating mode	Pump, open circuit	O
Size (NG)	45	45
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft Clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Mounting flange	Based on ISO 3019-1 (SAE) 2-hole	C
Working port	SAE flange connections Fastening thread according to ISO 6162, metric; rear working ports metric Not for through drive	11
Through drive	Without through drive	N00
