Unit · AXIAL-PISTON PUMP

AL A10VNO 28 DR /53R-VTE12N00 -S2873R902477562

Axial piston pump Bosch Rexroth series A10VNO, type code ALA10VNO28DR/53R-VTE12N00-S2873, material number R902477562. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Working port: according to ISO 6162 laterally opposite for through drive (12). Through drive: without through drive (N00). Special version no. 2873.

Number
R902477562
Type code
AL A10VNO 28 DR /53R-VTE12N00 -S2873
Group
A10VNO 28
Edition
06/2020

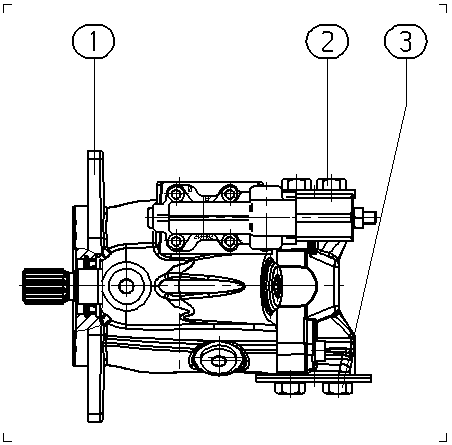

AL A10VNO 28 DR /53R-VTE12N00 -S2873 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902477563AXIAL-PISTON PUMP Assembly parts list →L1
R902480289FLANGE COVER1
R902480292FLANGE COVER1

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi)A10VN
Operating modePump, open circuitO
Size (NG)2828
Control devicePressure controller hydraulicDR
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Working portaccording to ISO 6162 laterally opposite for through drive12
Through driveWithout through driveN00

Other versions 12
