Unit · AXIAL-PISTON PUMP

A A10VNO 28 DR /53R-VTE12N00 -S2829R902477565

Axial piston pump Bosch Rexroth series A10VNO, type code AA10VNO28DR/53R-VTE12N00-S2829, material number R902477565. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi) (A10VN). Operating mode: pump, open circuit (O). Control device: pressure controller hydraulic (DR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Working port: according to ISO 6162 laterally opposite for through drive (12). Through drive: without through drive (N00). Special version no. 2829.

Number
R902477565
Type code
A A10VNO 28 DR /53R-VTE12N00 -S2829
Group
A10VNO 28
Edition
06/2020

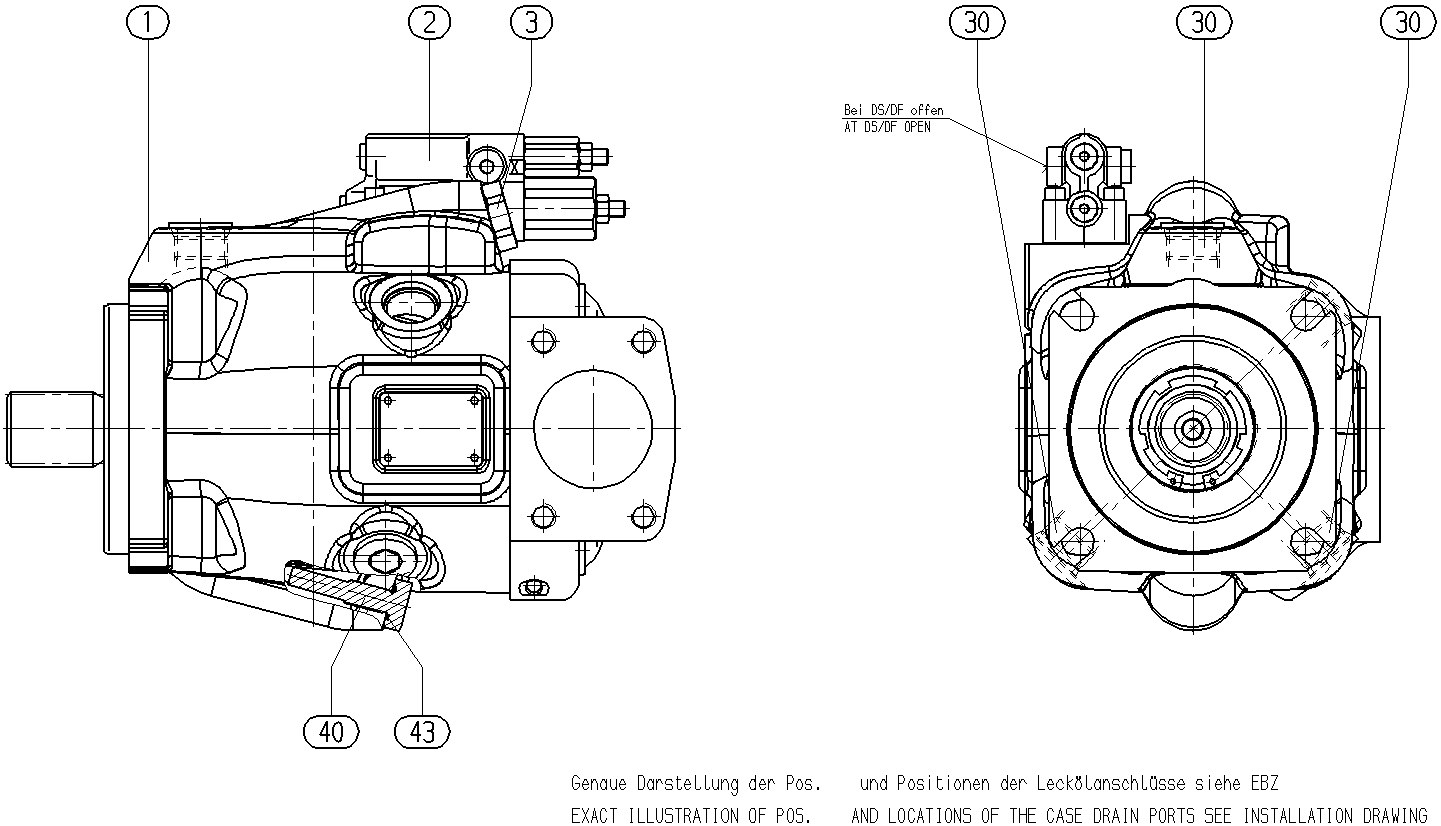

A A10VNO 28 DR /53R-VTE12N00 -S2829 — Drawing
Pos.NumberNameQtyAdd to inquiry
R902466556BASE UNIT Assembly parts list →L1
R902473320CONTROL VALVE Assembly parts list →L1
R902477567ADJUSTING PIECE Assembly parts list →L1
R910901969SCREW PLUG3

Parameters from the type code

ItemMeaningCode
Axial piston unitSwashplate design, variable, nominal pressure 210 bar (3050 psi), maximum pressure 250 bar (3600 psi)A10VN
Operating modePump, open circuitO
Size (NG)2828
Control devicePressure controller hydraulicDR
SeriesSeries 5, index 353
Direction of rotationViewed on drive shaft clockwiseR
Sealing materialFKM (fluorocarbon rubber)V
Working portaccording to ISO 6162 laterally opposite for through drive12
Through driveWithout through driveN00
