Unit · POMPA OSIOWO-TŁOKOWA

A A10VSO 45 DFLR/31R-VPA12N00 -SO160R902480099

Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45DFLR/31R-VPA12N00-SO160, material number R902480099. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 160.

Number: R902480099
Type code: A A10VSO 45 DFLR/31R-VPA12N00 -SO160
Group: A10VSO 45
Edition: 06/2020

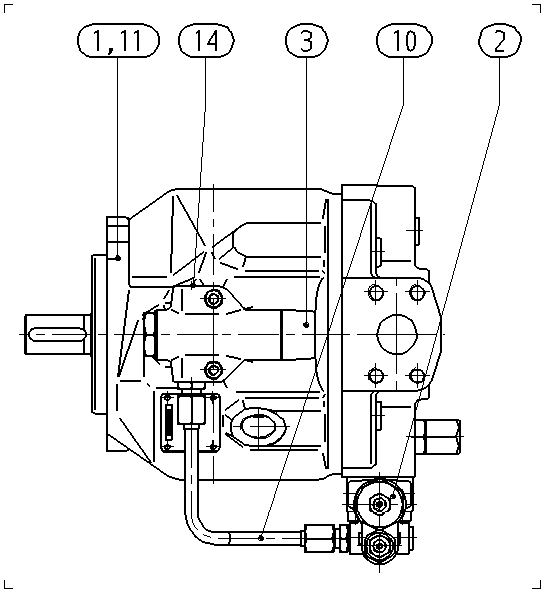

A A10VSO 45 DFLR/31R-VPA12N00 -SO160 — Drawing

Number	Name	Qty
R910983782	ZESPÓŁ PODSTAWY Assembly parts list →L	1
R902451761	ZAWÓR REGULACYJNY Assembly parts list →L	1
R902533217	ZAWÓR REGULACYJNY Assembly parts list →L	1
R910960164	ORUROWANIE Assembly parts list →L	1
R910911235	SCHEMAT ZASILANIA	1
R910764647	KOREK GWINTOWANY	1

Parameters from the type code

Item	Meaning	Code
Axial piston unit	Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar	A10VS
Operating mode	Pump, open circuit	O
Size (NG)	45	45
Control device	Pressure, flow and power controller	DFLR
Series	Series 3, index 1	31
Direction of rotation	Viewed on drive shaft clockwise	R
Sealing material	FKM (fluorocarbon rubber)	V
Drive shaft	Parallel keyed shaft DIN 6885 permissible through-drive torque	P
Mounting flange	ISO 3019-2 2-hole	A
Working port	SAE flange ports according to ISO 6162, metric fastening thread laterally opposite	12
Through drive	Without through drive	N00

Parameters from the type code
