Unit · AXIAL-PISTON PUMP
A A10VSO 45 DFLR/31R-VPA12N00 -S3022R902483079
Axial piston pump Bosch Rexroth series A10VSO, type code AA10VSO45DFLR/31R-VPA12N00-S3022, material number R902483079. Nominal size: NG 45. Axial piston unit: swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar (A10VS). Operating mode: pump, open circuit (O). Control device: pressure, flow and power controller (DFLR). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 permissible through-drive torque (P). Mounting flange: ISO 3019-2 2-hole (A). Working port: SAE flange ports according to ISO 6162, metric fastening thread laterally opposite (12). Through drive: without through drive (N00). Special version no. 3022.
- Number
- R902483079
- Type code
- A A10VSO 45 DFLR/31R-VPA12N00 -S3022
- Group
- A10VSO 45
- Edition
- 06/2020

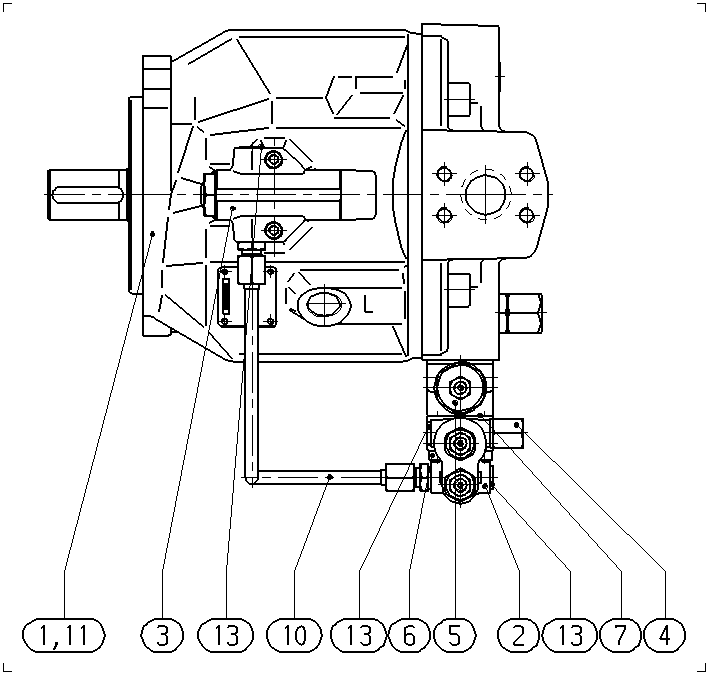

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910983782 | BASE UNIT Assembly parts list →L | 1 | ||
| R902541295 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902533217 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902409426 | ADAPTER Assembly parts list →L | 1 | ||
| R902455818 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910478474 | SOCKET HEAD CAP SCREW | 4 | ||
| R902434482 | SEAL | 1 | ||
| R910963806 | PIPING Assembly parts list →L | 1 | ||
| R910947533 | POWER DIAGRAM | 1 | ||
| R909154478 | SCREW PLUG | 3 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar, maximum pressure 350 bar | A10VS |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 45 | 45 |
| Control device | Pressure, flow and power controller | DFLR |
| Series | Series 3, index 1 | 31 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 permissible through-drive torque | P |
| Mounting flange | ISO 3019-2 2-hole | A |
| Working port | SAE flange ports according to ISO 6162, metric fastening thread laterally opposite | 12 |
| Through drive | Without through drive | N00 |
