Unit · AXIAL-PISTON PUMP
P A4VSG 750 HD1T /30R-VPH10KB79NR902482169
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG750HD1T/30R-VPH10KB79N, material number R902482169. Nominal size: NG 750. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: in accordance with ISO 3019-2 metric 8-hole (H). Working port: SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread (10). Through drives: 180, 4-hole 1 3/4 in 13T 8/16DP (KB7). Valves: SDVB valve block mounted (9). Filtration: without filter (N).
- Number
- R902482169
- Type code
- P A4VSG 750 HD1T /30R-VPH10KB79N
- Group
- A4VSG 750
- Edition
- 07/2020

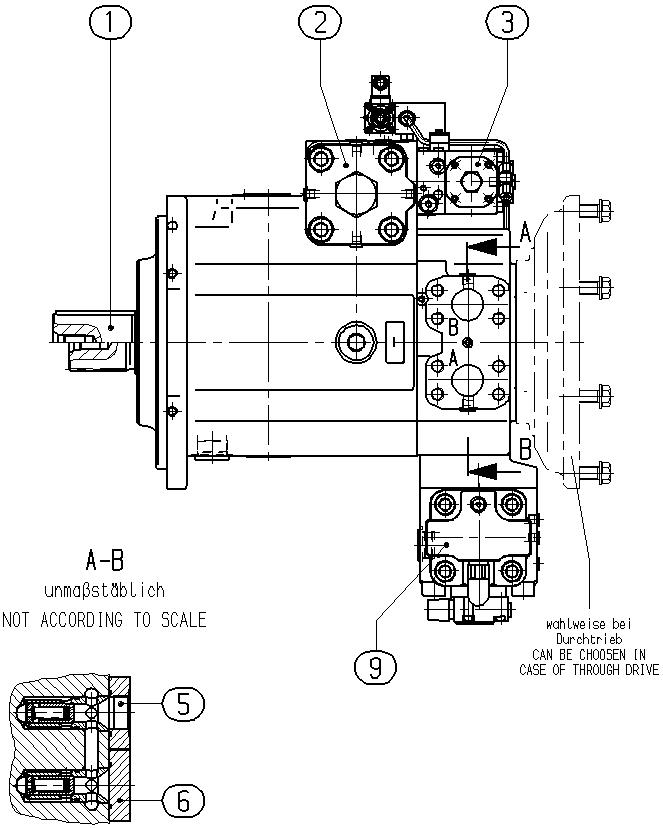

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910994360 | BASE UNIT Assembly parts list →L | 1 | ||
| R902482171 | CONTROL Assembly parts list →L | 1 | ||
| R910949145 | SPRING PACK Assembly parts list →L | 1 | ||
| R910970290 | VALVE MOUNTING KIT | 1 | ||
| R910970291 | VALVE MOUNTING KIT | 1 | ||
| R910970289 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| 61 | R902805710 | SHIPPING PROTECTION | 2 | |
| 62 | R902602207 | SEAL SCREW | 1 | |
| 64 | R902602207 | SEAL SCREW | 1 | |
| 65 | R902602207 | SEAL SCREW | 1 | |
| 71 | R902538905 | FLANGE COVER Assembly parts list →L | 1 | |
| 81 | R902602011 | SEAL SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 750 | 750 |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | In accordance with ISO 3019-2 metric 8-hole | H |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread metric fastening thread | 10 |
| Through drives | 180, 4-hole 1 3/4 in 13T 8/16DP | KB7 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Without filter | N |
