Unit · CONTROL
V A4VSG 750 HDT /30X -VR902482171
Control Bosch Rexroth series A4VSO, type code VA4VSG750HDT/30X-V, material number R902482171. Nominal size: NG 750. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R902482171
- Type code
- V A4VSG 750 HDT /30X -V
- Group
- A4VSG 750
- Edition
- 07/2020

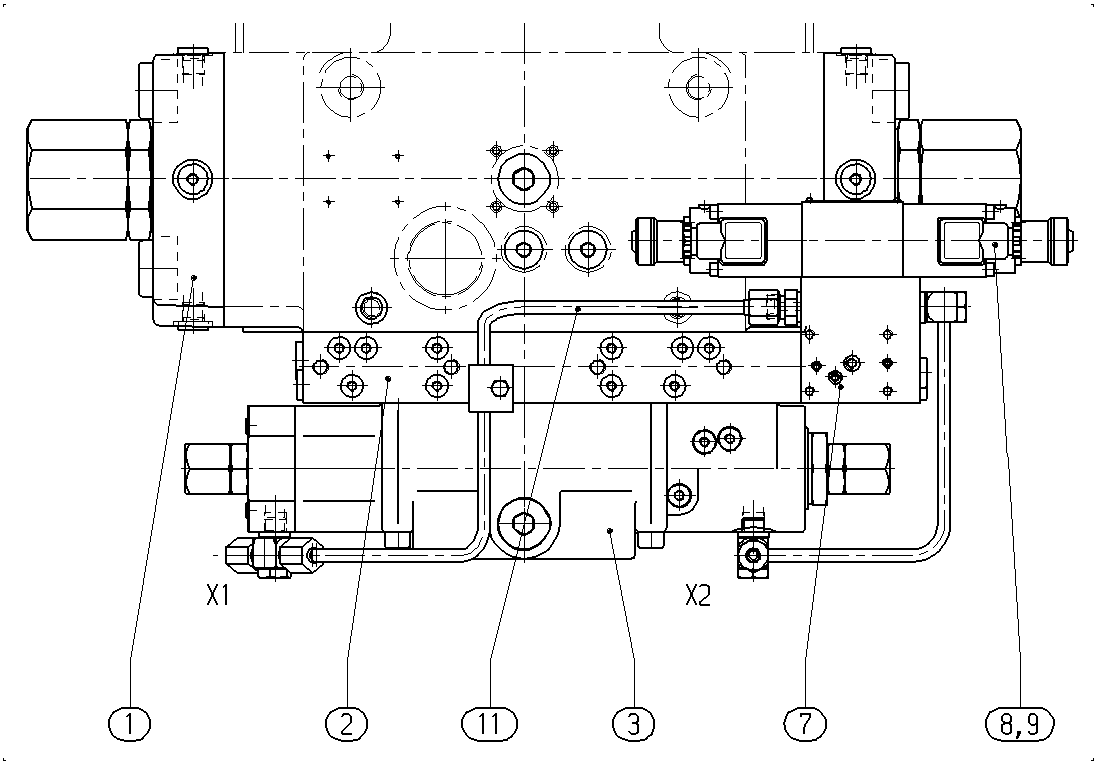

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910949095 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902414050 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910931841 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R910970280 | BLOCK Assembly parts list →L | 1 | ||
| R902405796 | PROPORTIONAL PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R910977595 | SOCKET HEAD CAP SCREW | 4 | ||
| R910917024 | PIPING PLAN Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 750 | 750 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| Electrical control of pilot pressure | T | |
| Series | Series 3, index 0 | 30 |
