Unit · AXIAL-PISTON PUMP
AL A10V O140LA7DS/32R-VSD62K68 -SO108R902501986
Axial piston pump Bosch Rexroth series A10VO, type code ALA10VO140LA7DS/32R-VSD62K68-SO108, material number R902501986. Nominal size: NG 140. Axial piston unit: swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar (A10V). Operating mode: pump, open circuit (O). Control devices: pressure cut-off from 91 to 160 bar, separate flow control hydraulic beginning of control.D (LA7DS). Directions of rotation: viewed on drive shaft clockwise (R). Seal: FKM (fluorocarbon rubber) (V). Mounting flange: based on ISO 3019-1 (SAE) SAE C; 4-hole (D). Working port: top, bottom, opposite, fastening thread UNC (62). Through drive: 101-2 (B) 7/8 in 13T 16/32DP (K68). Special version no. 108.
- Number
- R902501986
- Type code
- AL A10V O140LA7DS/32R-VSD62K68 -SO108
- Group
- A10VO 140
- Edition
- 06/2020

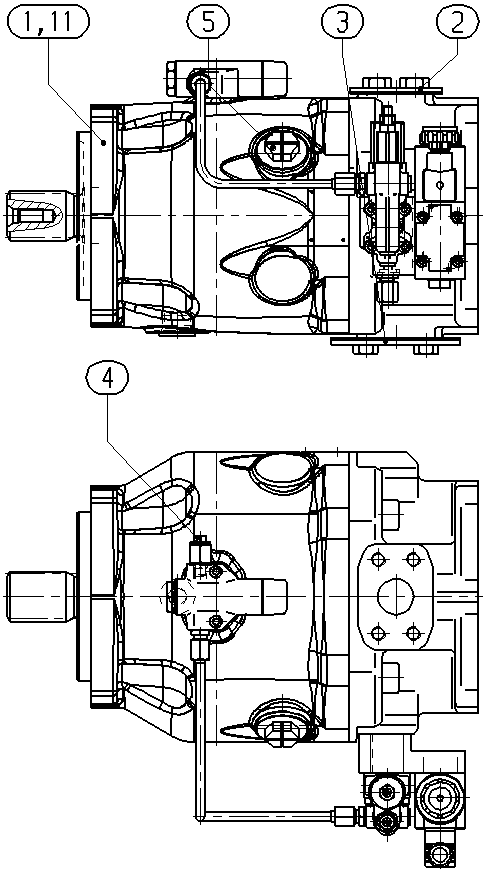

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902501989 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R902400585 | FLANGE COVER | 1 | ||
| R902400595 | FLANGE COVER | 1 | ||
| R902602014 | SEAL SCREW | 1 | ||
| R902603191 | SEAL SCREW | 1 | ||
| 6 | R909087113 | GUARD PLUG | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 280 bar (4100 psi), maximum pressure 350 bar | A10V |
| Operating mode | Pump, open circuit | O |
| Sizes (NG) | 140 | 140 |
| Control devices | pressure cut-off from 91 to 160 bar, separate flow control hydraulic beginning of control.D | LA7DS |
| Series | Series 3, index 2 | 32 |
| Directions of rotation | Viewed on drive shaft clockwise | R |
| Seal | FKM (fluorocarbon rubber) | V |
| Mounting flange | Based on ISO 3019-1 (SAE) SAE C; 4-hole | D |
| Working port | top, bottom, opposite, fastening thread UNC | 62 |
| Through drive | 101-2 (B) 7/8 in 13T 16/32DP | K68 |
