Unit · CONTROL

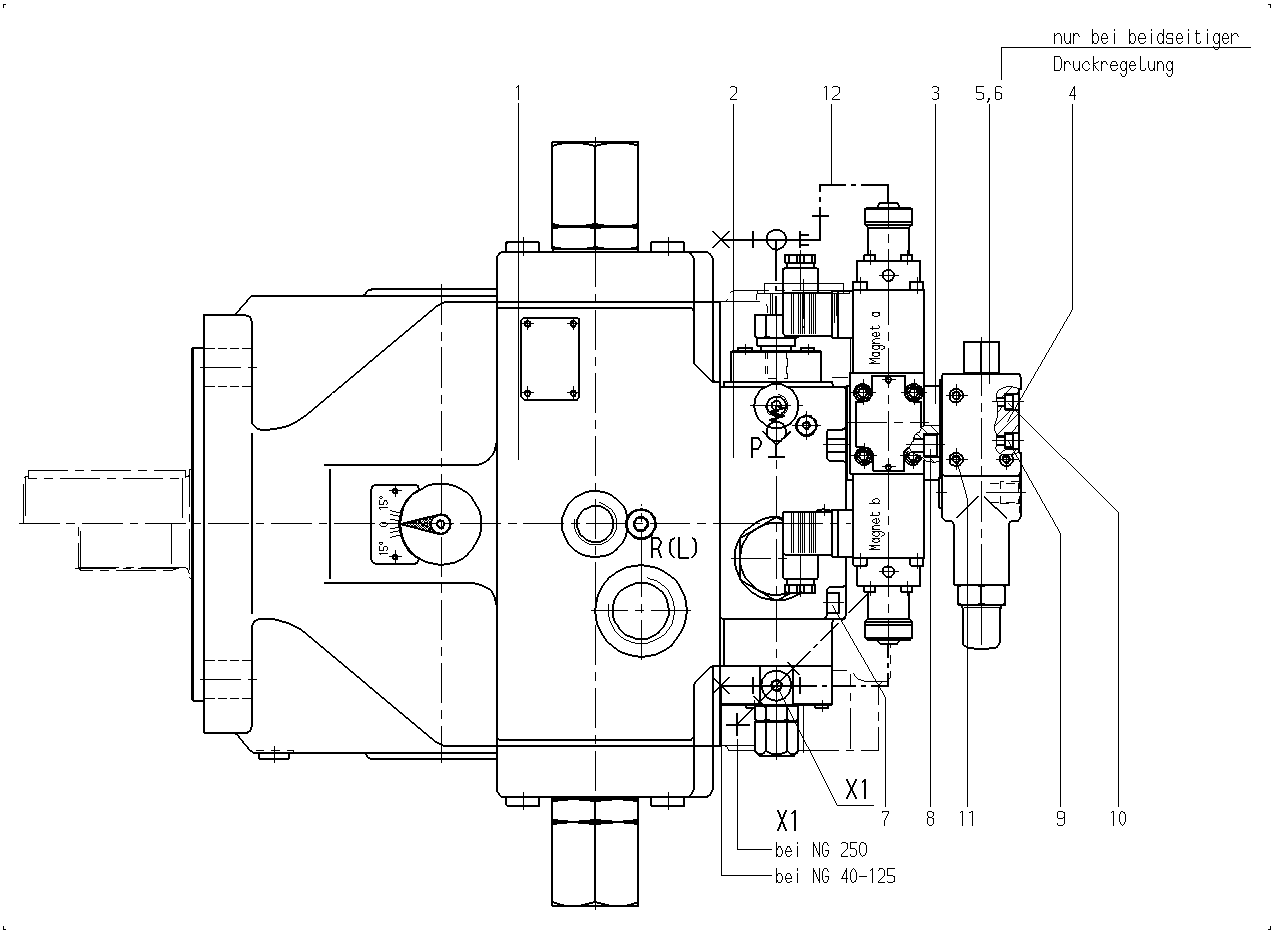

V A4VSG 71 HDGBT/11R 'HDGAT/L' -VR902542338
Control Bosch Rexroth series A4VSO, type code VA4VSG71HDGBT/11R'HDGAT/L'-V, material number R902542338. Nominal size: NG 71. Axial piston unit: swashplate design (A4VSG). Control device: hydraulic control, pilot-pressure related (HD).
- Number
- R902542338
- Type code
- V A4VSG 71 HDGBT/11R 'HDGAT/L' -V
- Group
- A4VSG 71
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902445505 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902542337 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R902542336 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910979316 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910942388 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910387053 | SOCKET HEAD CAP SCREW | 4 | ||
| R910938326 | SOCKET HEAD CAP SCREW | 2 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R910933745 | SOCKET HEAD CAP SCREW | 3 | ||
| R910120162 | SOCKET HEAD CAP SCREW | 4 | ||
| R910926623 | PIPING PLAN Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design | A4VSG |
| Size (NG) | 71 | 71 |
| Control device | Hydraulic control, pilot-pressure related | HD |
| With remote pressure control in B | GB | |
| Electrical control of pilot pressure | T | |
| Series | Series 1, index 1 | 11 |
