Unit · AXIAL-PISTON PUMP
P A4VSG 180 HS4KP/30R-VPB10KB39NR902542353
Axial piston pump Bosch Rexroth series A4VSG, type code PA4VSG180HS4KP/30R-VPB10KB39N, material number R902542353. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: based on ISO 3019-2 metric 4-hole (B). Working port: SAE flange ports A and B, located on same side, metric fastening thread (10). Through-drive: 100, 2-hole 7/8 in 13T 16/32DP (KB3). Valves: SDVB valve block mounted (9). Filtration: without filter (N).
- Number
- R902542353
- Type code
- P A4VSG 180 HS4KP/30R-VPB10KB39N
- Group
- A4VSG 180
- Edition
- 07/2020

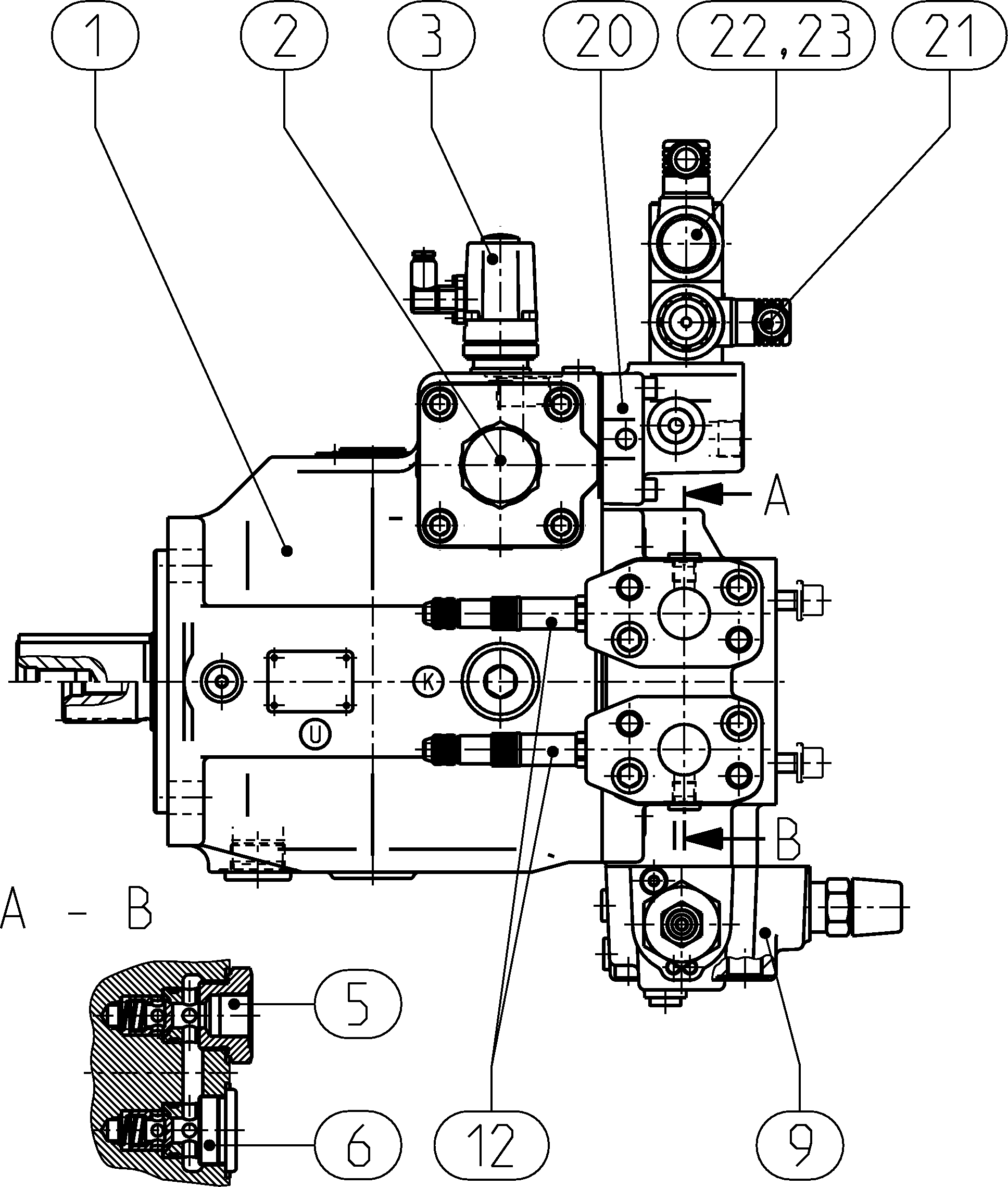

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902542352 | BASE UNIT Assembly parts list →L | 1 | ||
| R902450073 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902422925 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R910906960 | VALVE MOUNTING KIT | 1 | ||
| R910906959 | VALVE MOUNTING KIT | 1 | ||
| R910927584 | VALVE BLOCK Assembly parts list →L | 1 | ||
| R902539345 | PRESSURE SENSOR Assembly parts list →L | 2 | ||
| R910984172 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R910995947 | DIRECTIONAL SPOOL VALVE Assembly parts list →L | 1 | ||
| R902437398 | VALVE Assembly parts list →L | 1 | ||
| R910933745 | SOCKET HEAD CAP SCREW | 4 | ||
| 61 | R902460826 | FLANGE COVER | 2 | |
| 62 | R902602013 | SEAL SCREW | 1 | |
| 64 | R902602011 | SEAL SCREW | 1 | |
| 65 | R902602011 | SEAL SCREW | 1 | |
| 71 | R902573673 | FLANGE COVER | 1 | |
| 81 | R902602011 | SEAL SCREW | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure | A4VS |
| Operating mode | Pump, closed circuit | G |
| Series | Series 3, index 0 | 30 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | Based on ISO 3019-2 metric 4-hole | B |
| Working port | SAE flange ports A and B, located on same side, metric fastening thread | 10 |
| Through-drive | 100, 2-hole 7/8 in 13T 16/32DP | KB3 |
| Valves | SDVB valve block mounted | 9 |
| Filtration | Without filter | N |
