Unit · CONTROL
V A4VSG 71 EPG /11R-V -S1269R902545891
Control Bosch Rexroth series A4VSG, type code VA4VSG71EPG/11R-V-S1269, material number R902545891. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric (A4VS). Operating mode: pump, closed circuit (G). Direction of rotation: viewed on drive shaft clockwise (R). Sealing material: FKM (fluorocarbon rubber) (V). Drive shaft: splined shaft ISO 3019-1 (S). Valves: SDVB valve block mounted (9).
- Number
- R902545891
- Type code
- V A4VSG 71 EPG /11R-V -S1269
- Group
- A4VSG 71
- Edition
- 06/2020

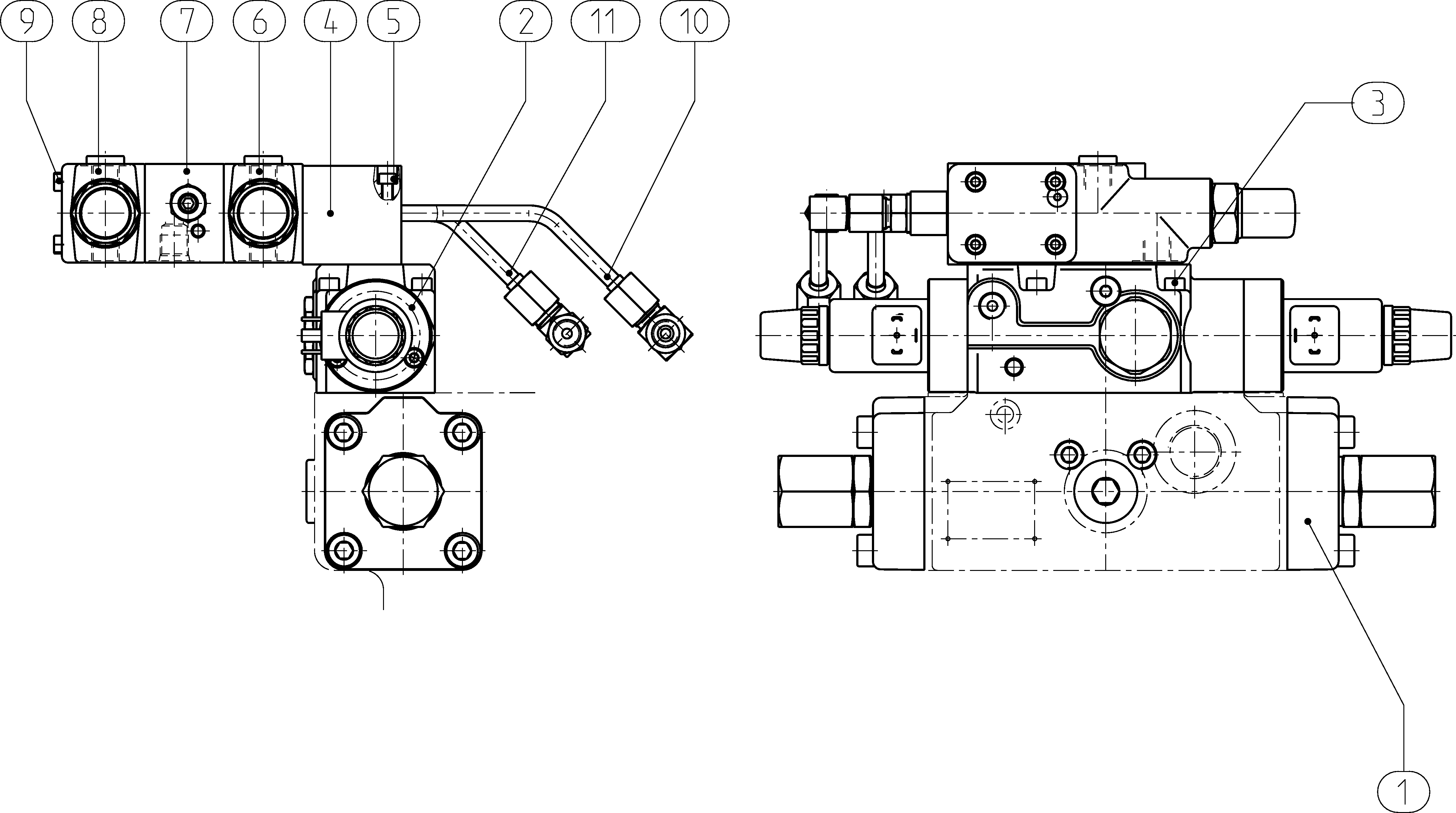

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902445505 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910387053 | SOCKET HEAD CAP SCREW | 4 | ||
| R910979316 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910785105 | SOCKET HEAD CAP SCREW | 4 | ||
| R902418156 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R902418070 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R902418160 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910915346 | SOCKET HEAD CAP SCREW | 4 | ||
| R902436737 | PIPING Assembly parts list →L | 1 | ||
| R902436740 | PIPING Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5100 psi (350 bar), maximum pressure 5800 psi (400 bar) metric | A4VS |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 71 | 71 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Sealing material | FKM (fluorocarbon rubber) | V |
| Drive shaft | Splined shaft ISO 3019-1 | S |
| Valves | SDVB valve block mounted | 9 |
