Unit · AXIAL-PISTON PUMP
A A4F O 71 /10R-PPB25K52R902565650
Axial piston pump Bosch Rexroth series A4FO, type code AA4FO71/10R-PPB25K52, material number R902565650. Nominal size: NG 71. Axial piston unit: swashplate design, fixed displacement (A4F). Operating mode: pump, open circuit (O). Direction of rotation: viewed on drive shaft (R). Sealing material: NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) (P). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019, 4-hole (B). Working port: SAE pressure and suction port, at side, offset by 90° 2nd pressure port B1 opposite B (plugged with flange plate on delivery) (25).
- Number
- R902565650
- Type code
- A A4F O 71 /10R-PPB25K52
- Group
- A4FO 71
- Edition
- 07/2020

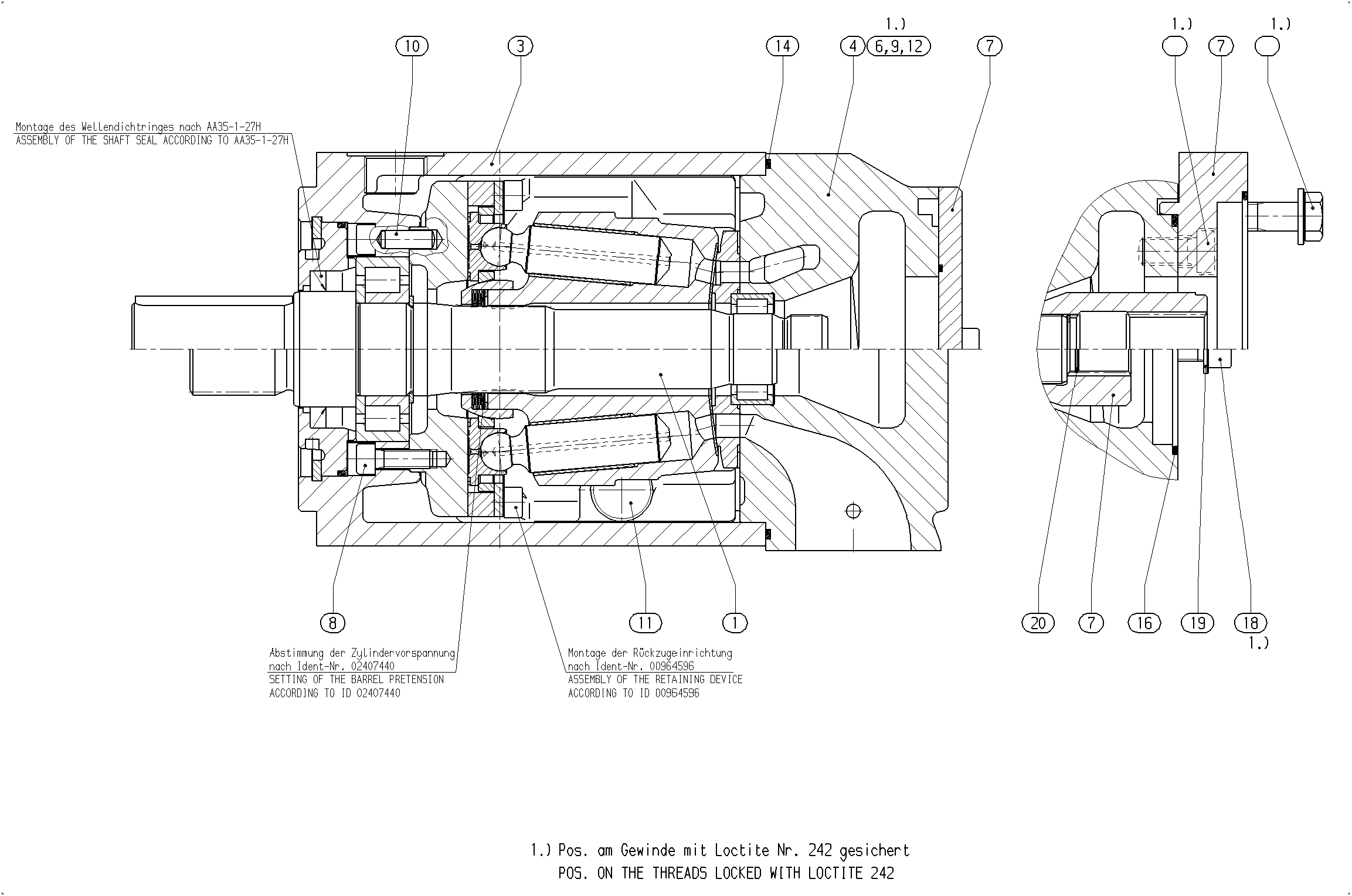

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902425393 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910918854 | PUMP HOUSING | 1 | ||
| R902565651 | CONNECTION PLATE | 1 | ||
| R910962643 | BLANK FLANGE Assembly parts list →L | 1 | ||
| R910994849 | ATTACHMENT KIT Assembly parts list →L | 1 | ||
| R910110175 | SOCKET HEAD CAP SCREW | 5 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 4 | ||
| R910922017 | STRAIGHT PIN | 2 | ||
| R909153365 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R910113727 | O-RINGD | 1 | ||
| 61 | R902805708 | SHIPPING PROTECTION | 1 | |
| 62 | R902602012 | SEAL SCREW | 1 | |
| 63 | R902421949 | SHIPPING PROTECTION | 1 | |
| 71 | R902418324 | FLANGE COVER Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, fixed displacement | A4F |
| Operating mode | Pump, open circuit | O |
| Size (NG) | 71 | 71 |
| Series | Series 1, index 0 | 10 |
| Direction of rotation | Viewed on drive shaft | R |
| Sealing material | NBR (nitrile rubber), shaft seal in FKM (fluoroelastomer) | P |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019, 4-hole | B |
| Working port | SAE pressure and suction port, at side, offset by 90° 2nd pressure port B1 opposite B (plugged with flange plate on delivery) | 25 |
