Unit · AXIAL-PISTON PUMP
A8V55SR4R131F1R909078926

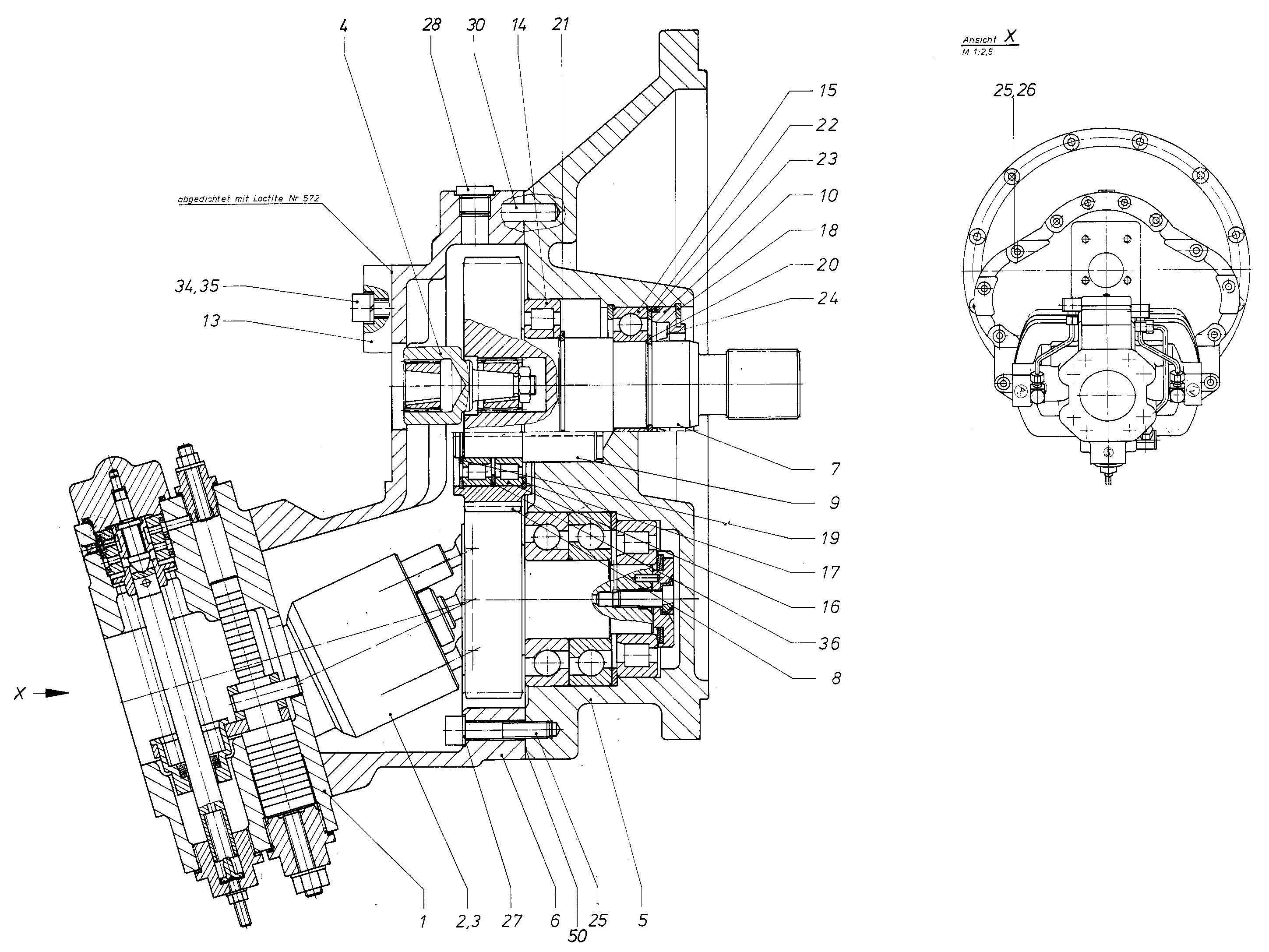

Axial piston pump Bosch Rexroth series A8V, type code A8V55SR4R131F1, material number R909078926.
- Number
- R909078926
- Type code
- A8V55SR4R131F1
- Group
- A8V 55
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909078501 | POWER REGULATOR Assembly parts list →L | 1 | ||
| R909078838 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909078839 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909402722 | COUPLING Assembly parts list →L | 1 | ||
| R909073559 | GEAR HOUSING | 1 | ||
| R909073552 | ROTARY GROUP HOUSING | 1 | ||
| R909075467 | DRIVE PINION | 1 | ||
| R909073661 | TOOTHED WHEEL | 1 | ||
| R909071879 | JOURNAL | 1 | ||
| R909071880 | LOCKING RINGD | 1 | ||
| R909153442 | CYL. ROLLER BEARING | 1 | ||
| R909085464 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909153268 | CYL. ROLLER BEARING | 2 | ||
| R909083408 | RETAINING RING | 2 | ||
| R909083416 | RETAINING RING | 2 | ||
| R909083358 | RETAINING RING | 1 | ||
| R909084416 | RETAINING RING | 1 | ||
| R909083365 | RETAINING RING | 1 | ||
| R909084590 | SHIM RING | 2 | ||
| R909083822 | O-RINGD | 1 | ||
| R909830386 | SHAFT SEALING RINGD | 1 | ||
| R909083067 | SOCKET HEAD CAP SCREW | 16 | ||
| R909083251 | SPRING LOCK WASHER | 12 | ||
| R909084305 | SEAL RINGD | 4 | ||
| R909153815 | SCREW PLUGD | 4 | ||
| R909076087 | STRAIGHT PIN | 2 | ||
| R909150998 | SHIM RING | 2 | ||
| R902011885 | SEALD | 1 |
