Unit · DISPLACEMENT UNIT
KONSTANTEINHEITR909402886
Hydraulic unit Bosch Rexroth, type code KONSTANTEINHEIT, material number R909402886.
- Number
- R909402886
- Type code
- KONSTANTEINHEIT
- Group
- DISPLACEMENT UNIT
- Edition
- 02/2020

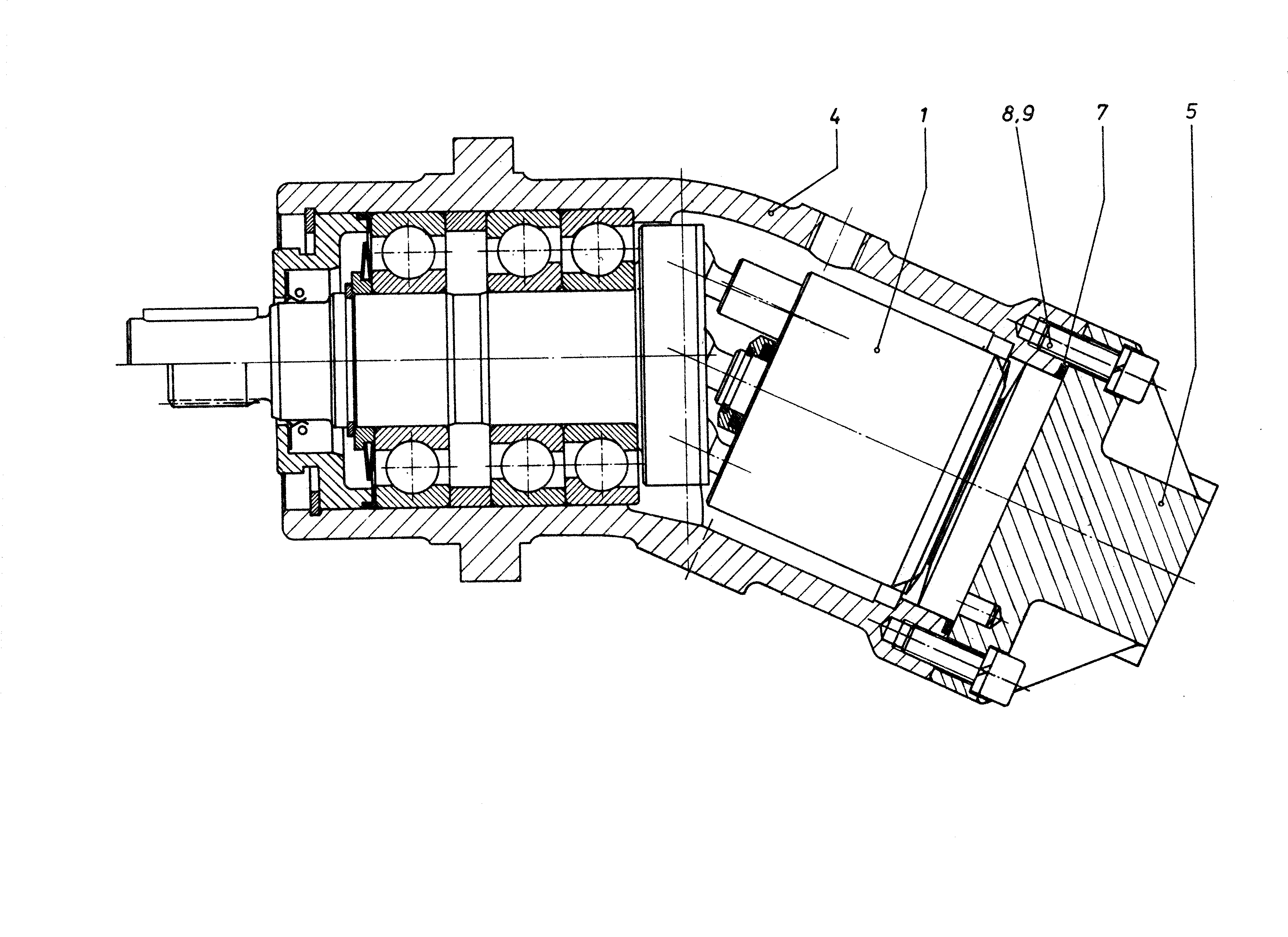

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909061984 | ROTARY GROUP Assembly parts list →L | 1 | |
| 4 | R909402887 | HOUSING | 1 | |
| 5 | R909060684 | CONNECTION PLATE | 1 | |
| 7 | R909083825 | O-RINGD | 1 | |
| 8 | R909083061 | SOCKET HEAD CAP SCREW | 6 | |
| 9 | R909083251 | SPRING LOCK WASHER | 6 |
