Unit · AXIAL-PISTON PUMP
A4V90EL1.0R0EXOXA-SR909414884
Axial piston pump Bosch Rexroth series A4V, type code A4V90EL1.0R0EXOXA-S, material number R909414884.
- Number
- R909414884
- Type code
- A4V90EL1.0R0EXOXA-S
- Group
- A4V 90
- Edition
- 06/2020

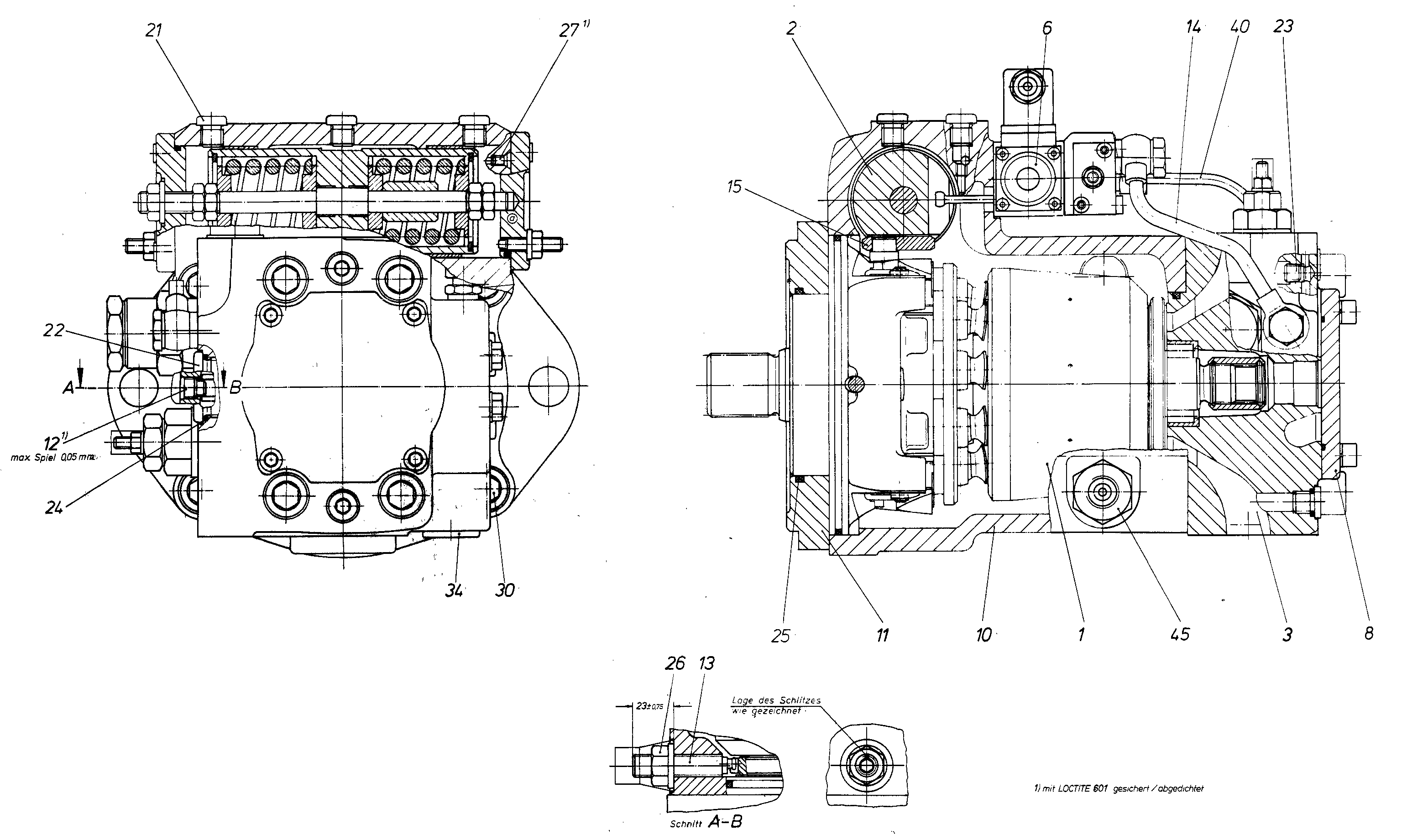

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909411912 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909414673 | CONTROL Assembly parts list →L | 1 | ||
| R909411833 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909079318 | CONTROL UNIT Assembly parts list →L | 1 | ||
| R909080134 | SEALING COVER Assembly parts list →L | 1 | ||
| R909405946 | HOUSING | 1 | ||
| R909074121 | FLANGE | 1 | ||
| R909414045 | ANTI-TWIST LOCK | 1 | ||
| R909414046 | ANTI-TWIST LOCK | 1 | ||
| R909405758 | ECCENTRIC SCREW | 1 | ||
| R909400356 | PIPE Assembly parts list →L | 1 | ||
| R909074171 | SLIDER | 1 | ||
| R909151692 | SCREW PLUGD | 5 | ||
| R909083228 | SCREW PLUG | 1 | ||
| R909084792 | SCREW PLUG | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909085365 | O-RINGD | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083139 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153891 | SCREW PLUGD | 1 | ||
| R909416182 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909411763 | ORIFICE SCREW Assembly parts list →L | 1 |
