Unit · AXIAL-PISTON PUMP
V-PUMPEAA7VTO160SRD/60L-PZD1*G*R909416411
Axial piston pump Bosch Rexroth series A7VTO, type code V-PUMPEAA7VTO160SRD/60L-PZD1*G*, material number R909416411.
- Number
- R909416411
- Type code
- V-PUMPEAA7VTO160SRD/60L-PZD1*G*
- Group
- A7VTO 160
- Edition
- 06/2020

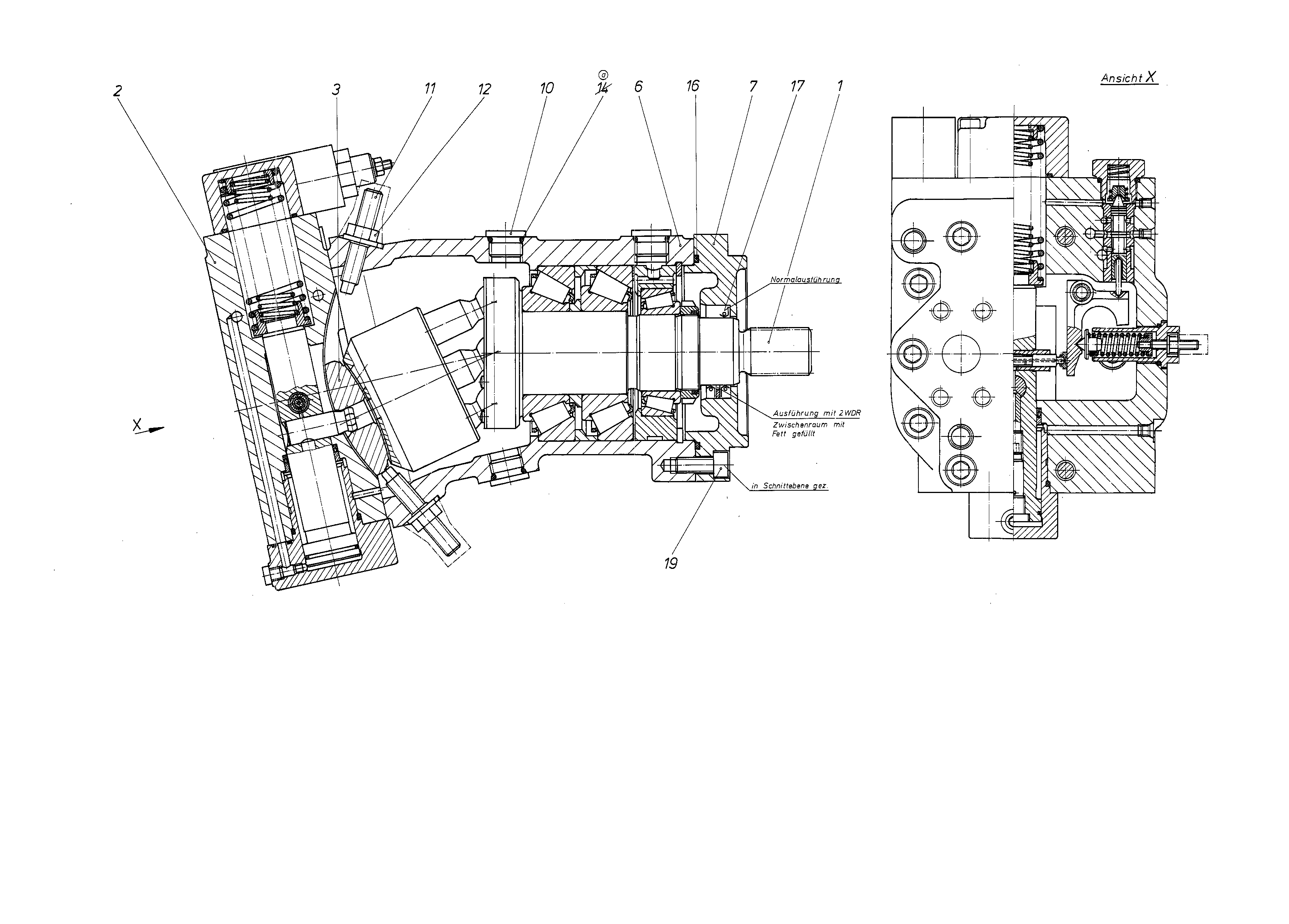

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414856 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909416386 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650456 | CONTROL LENS, LEFT-HAND ROTATION | 1 | |
| 6 | R909425282 | HOUSING | 1 | |
| R909414857 | FLANGE | 1 | ||
| R909153339 | SCREW PLUGD | 3 | ||
| 11 | R909153075 | SETSCREW | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| R909085929 | O-RINGD | 1 | ||
| R909830388 | SHAFT SEALING RINGD | 1 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 4 |
