Unit · AXIAL-PISTON PUMP
AA11VG19MD1/10R-PSC66F021S*G*R909421668
Axial piston pump Bosch Rexroth series A11VO, type code AA11VG19MD1/10R-PSC66F021S*G*, material number R909421668. Nominal size: NG 19. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C). Standard/special version: special version (S).
- Number
- R909421668
- Type code
- AA11VG19MD1/10R-PSC66F021S*G*
- Group
- A11VG 19
- Edition
- 06/2020

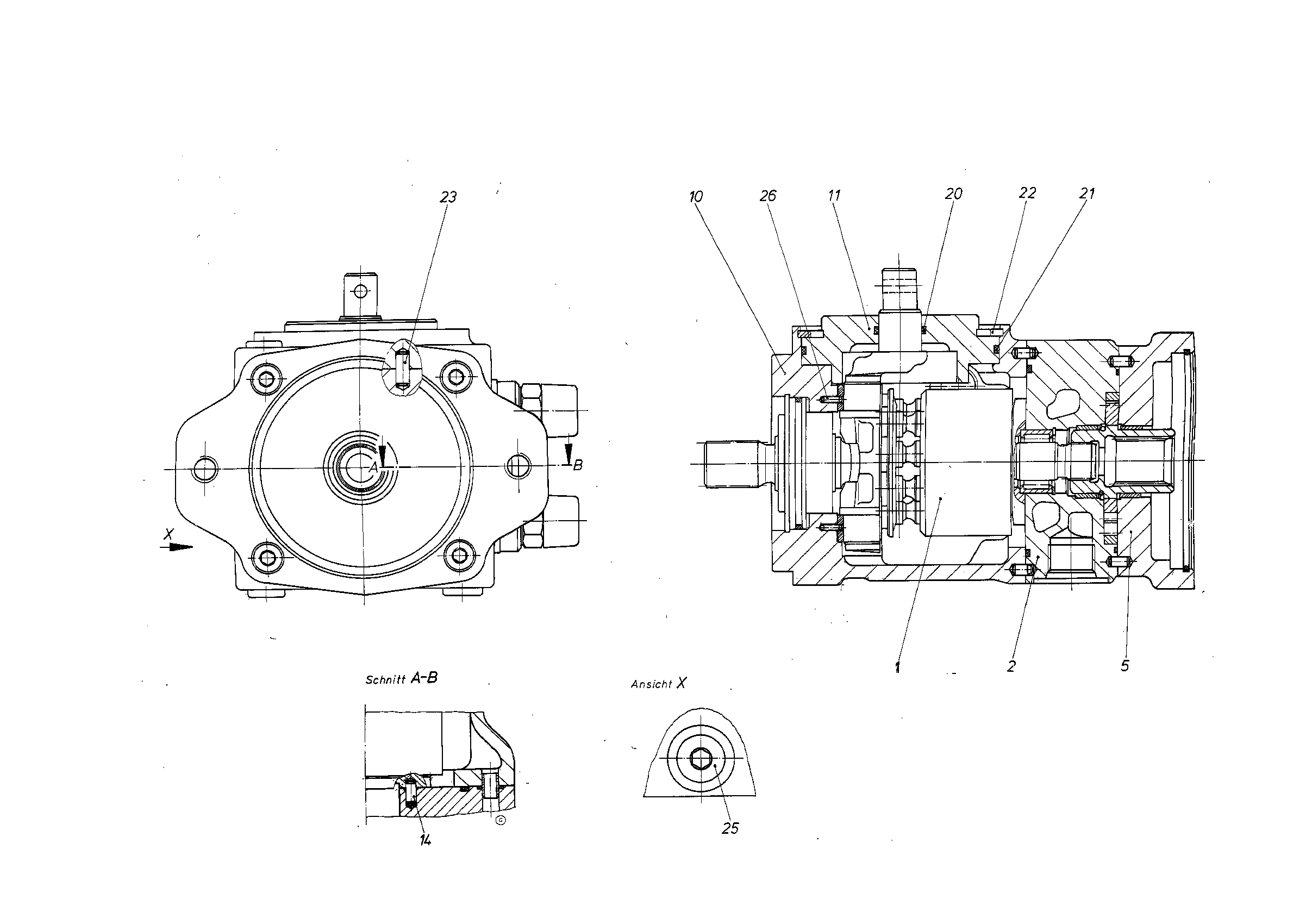

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438460 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909421684 | CONNECTION PLATE Assembly parts list →L | 1 | |
| 5 | R909421140 | INTERNAL GEAR PUMP ASSEMBLY Assembly parts list →L | 1 | |
| R909431613 | HOUSING | 1 | ||
| 11 | R909431614 | HOUSING COVER | 1 | |
| 14 | R913009664 | STRAIGHT PIN | 1 | |
| R909083760 | O-RINGD | 1 | ||
| R909086495 | O-RINGD | 1 | ||
| R909157169 | RETAINING RING | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909153338 | SCREW PLUGD | 1 | ||
| R909150772 | SLOTTED SPRING PIN | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 19 | 19 |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
| Standard/special version | Special version | S |
