Unit · AXIAL-PISTON PUMP
A4V71DA2.0R1G5A1A-SR909421911
Axial piston pump Bosch Rexroth series A4V, type code A4V71DA2.0R1G5A1A-S, material number R909421911.
- Number
- R909421911
- Type code
- A4V71DA2.0R1G5A1A-S
- Group
- A4V 71
- Edition
- 11/2021

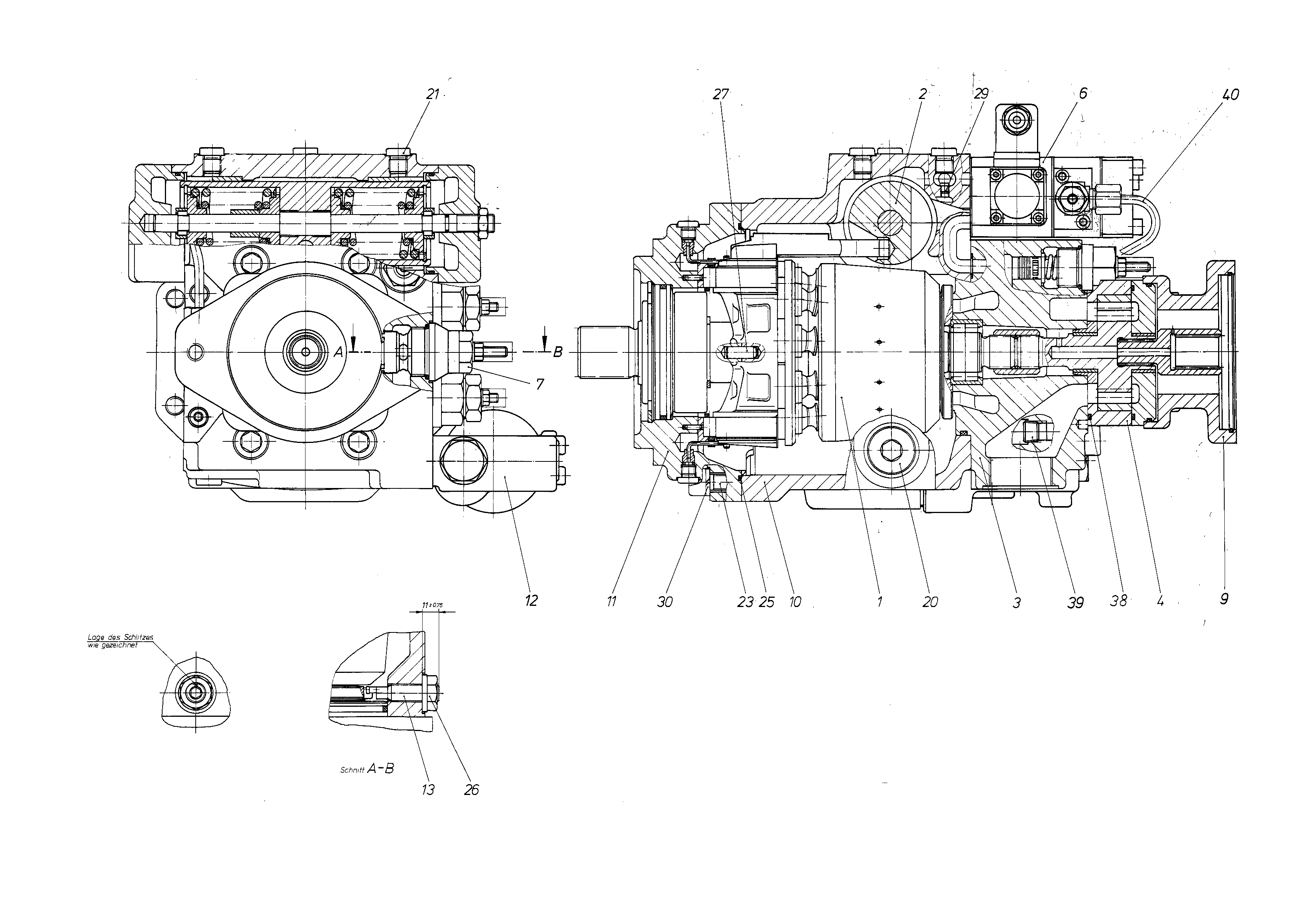

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909400440 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909434069 | CONTROL Assembly parts list →L | 1 | ||
| R909408391 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909408055 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909423991 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909414722 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R909405694 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909405623 | HOUSING | 1 | ||
| R909405621 | FLANGE Assembly parts list →L | 1 | ||
| R909411497 | MOUNTABLE FILTER Assembly parts list →L | 1 | ||
| R909405758 | ECCENTRIC SCREW | 1 | ||
| R909153891 | SCREW PLUGD | 3 | ||
| R909151692 | SCREW PLUGD | 6 | ||
| R909086573 | SOCKET HEAD CAP SCREW | 8 | ||
| R909086684 | O-RINGD | 1 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909087752 | STRAIGHT PIN | 1 | ||
| R909156495 | NOZZLE | 2 | ||
| R909083252 | SPRING LOCK WASHER | 8 | ||
| R909087912 | SCREW PLUG | 1 | ||
| 45 | R909438596 | HYDRAULIC LINE Assembly parts list →L | 1 |
