Unit · AXIAL-PISTON PUMP
V-PUMPEA7V028DR/6-422625*G*R909422625
Axial piston pump Bosch Rexroth series A7V, type code V-PUMPEA7V028DR/6-422625*G*, material number R909422625.
- Number
- R909422625
- Type code
- V-PUMPEA7V028DR/6-422625*G*
- Group
- A7V 28
- Edition
- 07/2020

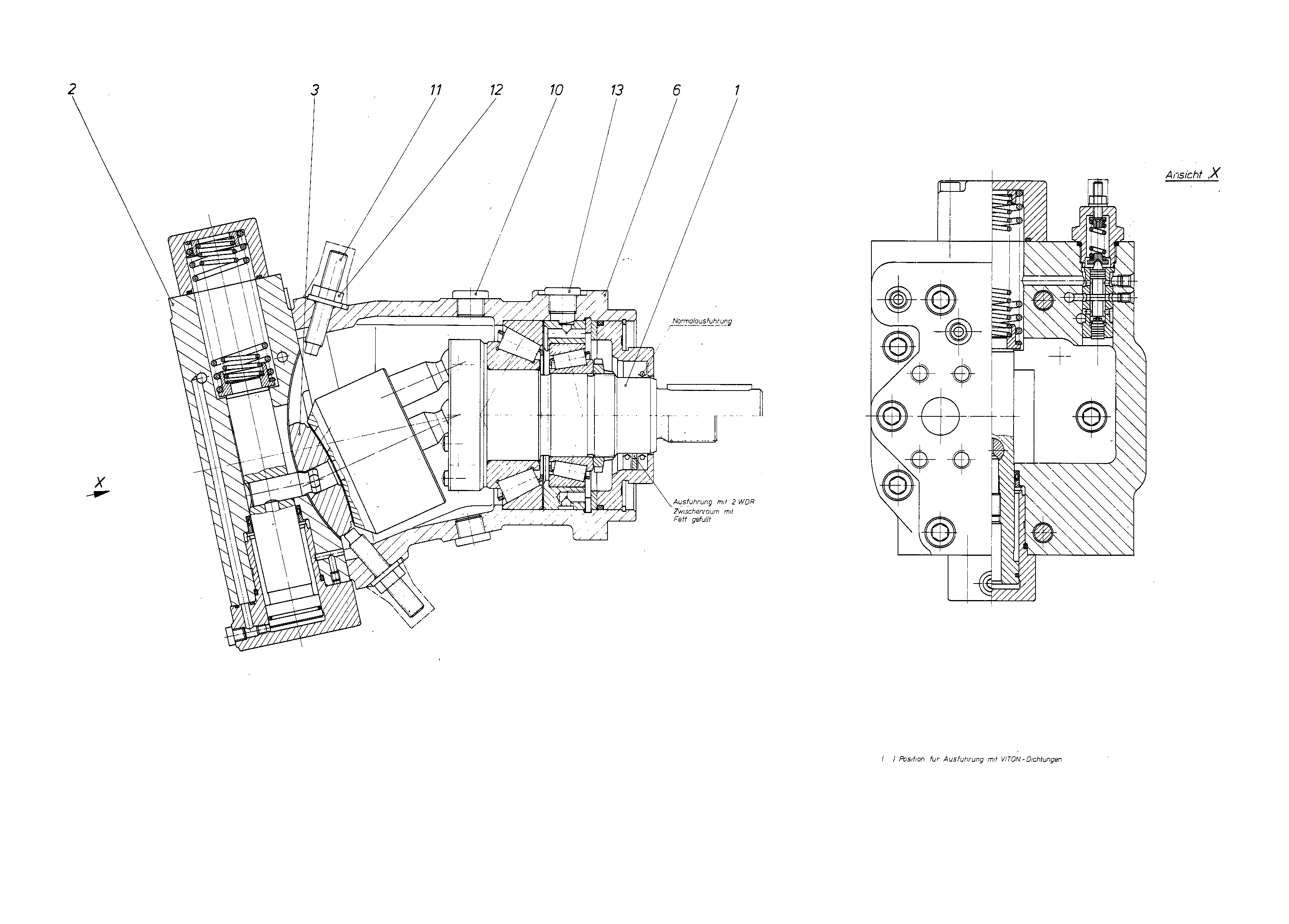

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909421346 | ROTARY GROUP Assembly parts list →L | 1 | |
| 2 | R909422701 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650448 | CONTROL LENS, LEFT-HAND ROTATION | 1 | |
| R909417143 | HOUSING | 1 | ||
| R909156864 | SCREW PLUGD | 2 | ||
| 11 | R909153076 | SETSCREW | 2 | |
| R909152707 | SEALING NUTD | 2 | ||
| R909156864 | SCREW PLUGD | 1 |
