Unit · AXIAL-PISTON PUMP
V-PUMPEA7VTO160LRD/6-423214*G*R909423214
Axial piston pump Bosch Rexroth series A7VTO, type code V-PUMPEA7VTO160LRD/6-423214*G*, material number R909423214.
- Number
- R909423214
- Type code
- V-PUMPEA7VTO160LRD/6-423214*G*
- Group
- A7VTO 160
- Edition
- 06/2020

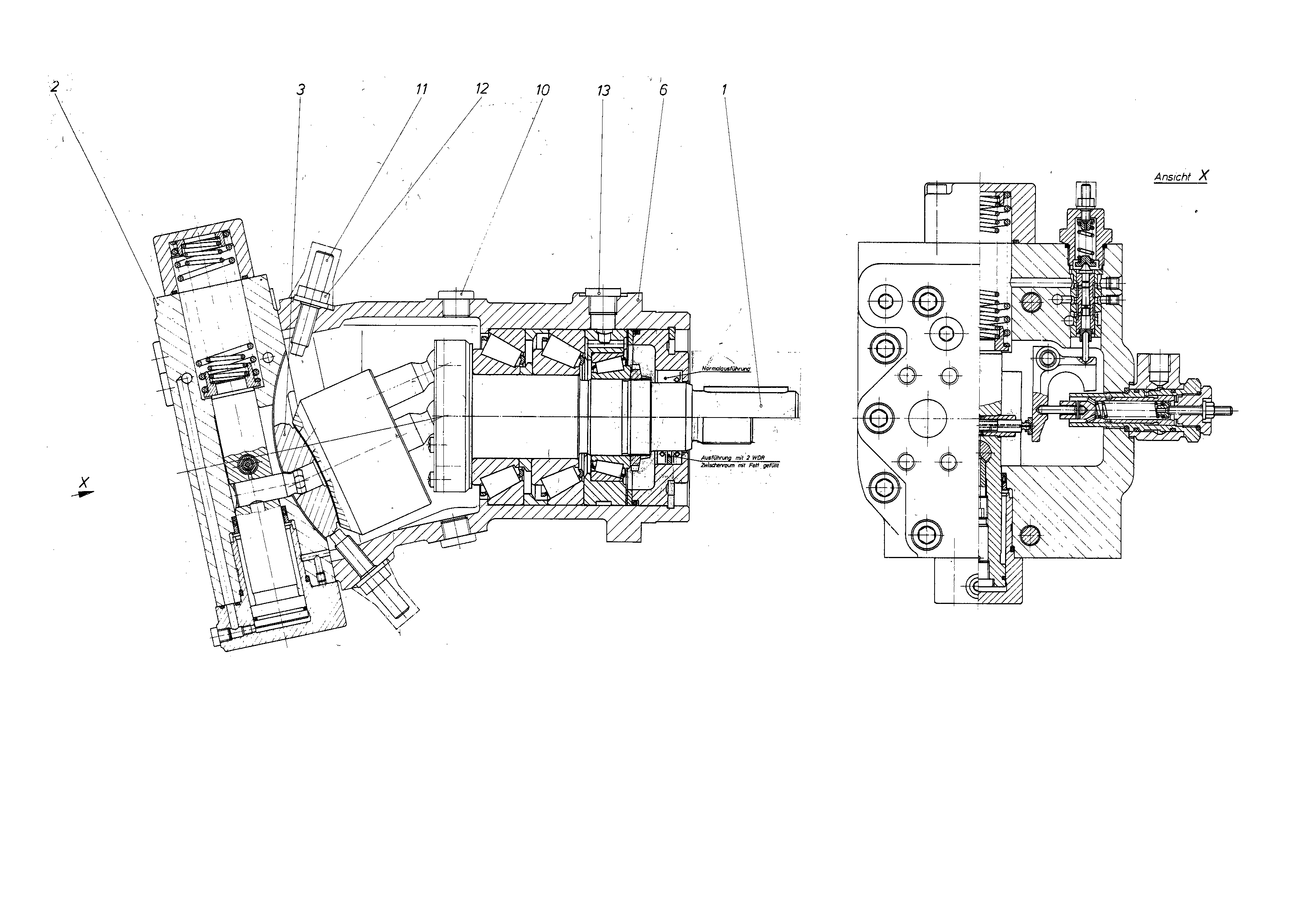

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909423212 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909425265 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909650456 | CONTROL LENS, LEFT-HAND ROTATION | 1 | |
| R909425283 | HOUSING | 1 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R909153075 | SETSCREW | 2 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R909151694 | SCREW PLUGD | 1 |
