Unit · AXIAL-PISTON PUMP
V-PUMPEA7V080HDD/6-424379*G*R909424379
Axial piston pump Bosch Rexroth series A7V, type code V-PUMPEA7V080HDD/6-424379*G*, material number R909424379.
- Number
- R909424379
- Type code
- V-PUMPEA7V080HDD/6-424379*G*
- Group
- A7V 80
- Edition
- 07/2020

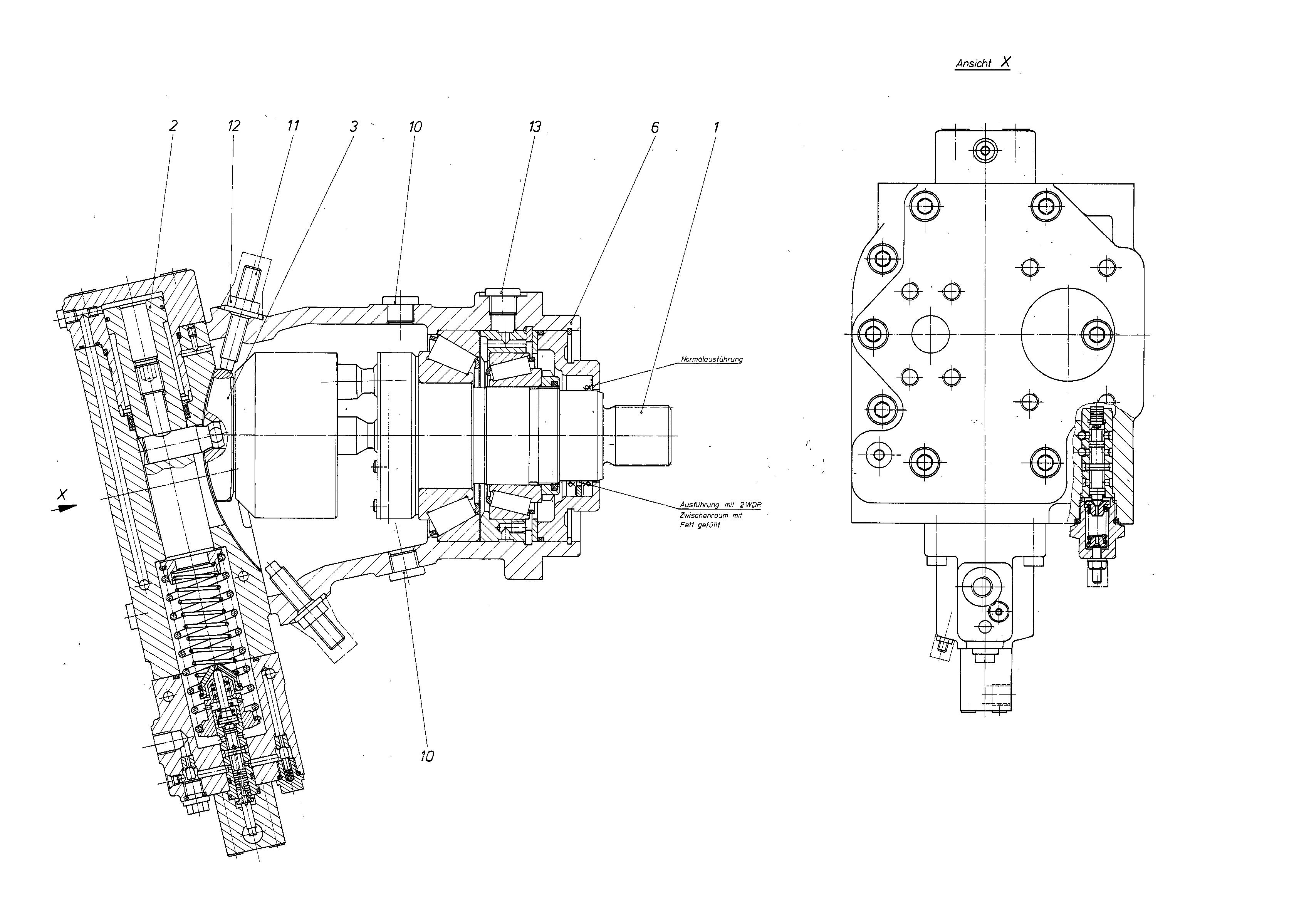

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909410210 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909424378 | CONTROL Assembly parts list →L | 1 | ||
| R909650451 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R909412111 | HOUSING | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| 11 | R909085976 | SETSCREW | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| R909153815 | SCREW PLUGD | 1 |
