Unit · AXIAL-PISTON PUMP
A4VG28EZ1DM1/30L-PZC10N001E-SR909424384
Axial piston pump Bosch Rexroth series A4VG, type code A4VG28EZ1DM1/30L-PZC10N001E-S, material number R909424384. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Control device: two-point control, U = 12 V electric with switching solenoid (EZ1). Pressure cut-off: pressure cut-off (D). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: splined shaft for single pump DIN 5480 (Z). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, same side right suction port S bottom (10). Boost pump: without integrated boost pump without through drive (N). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve, pilot operated 100 … 420 bar with bypass (1). Filtration boost circuit/external boost pressure supply: external boost pressure supply (version without integrated boost pump – N00, K...) (E).
- Number
- R909424384
- Type code
- A4VG28EZ1DM1/30L-PZC10N001E-S
- Group
- A4VG 28
- Edition
- 06/2020

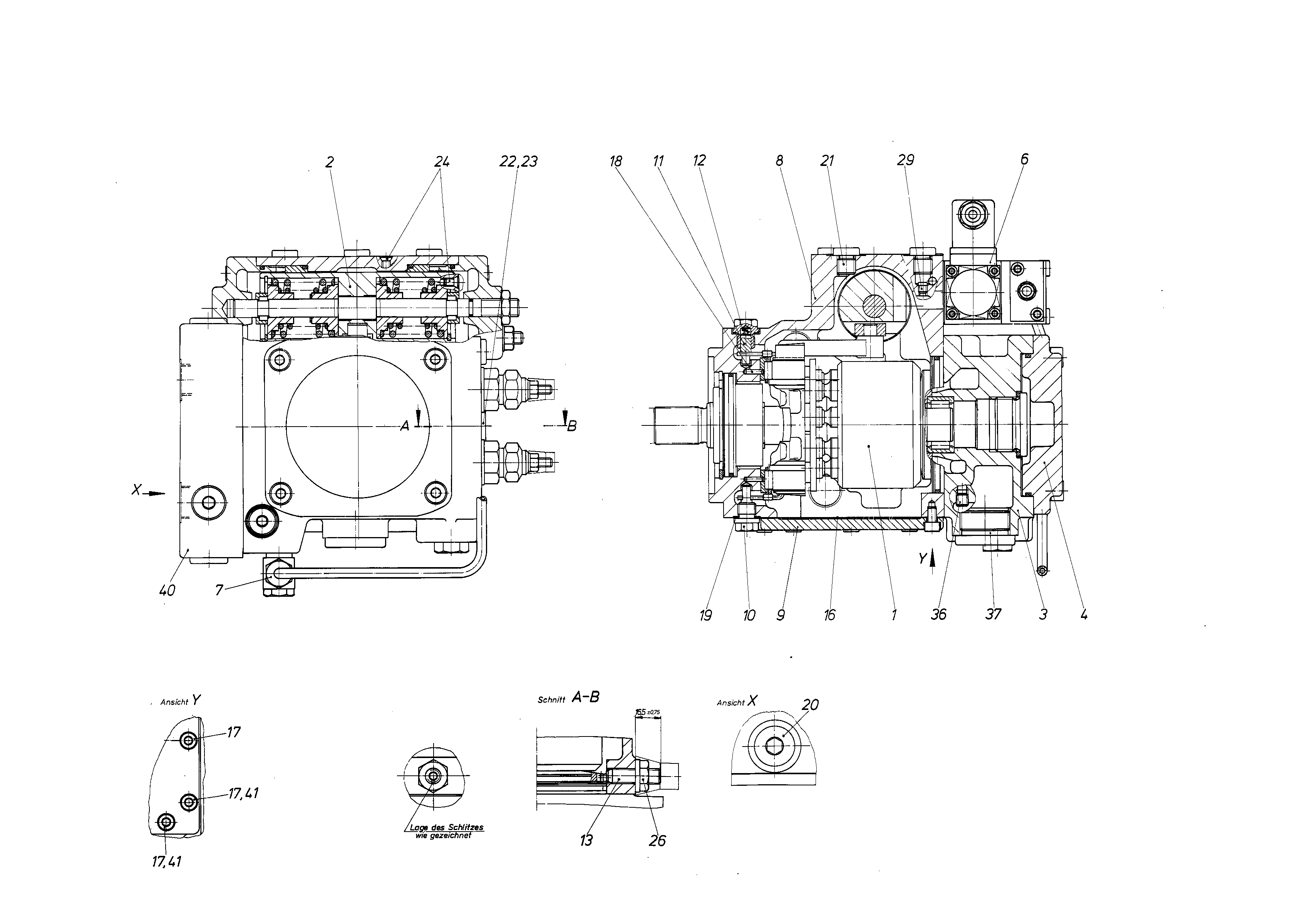

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434320 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909434072 | CONTROL Assembly parts list →L | 1 | ||
| 3 | R909441387 | CONNECTION PLATE Assembly parts list →L | 1 | |
| 6 | R909437714 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | |
| 7 | R909426741 | HYDRAULIC LINE | 1 | |
| R909426341 | HOUSING | 1 | ||
| 9 | R909426076 | HOUSING COVER | 1 | |
| 10 | R909414228 | SCREW PLUG | 2 | |
| R909449291 | PIVOT PIN | 2 | ||
| 13 | R909432832 | ECCENTRIC SCREW | 1 | |
| R909435277 | SEALD | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 11 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909152726 | SEAL RINGD | 2 | ||
| 20 | R909151694 | SCREW PLUGD | 3 | |
| 21 | R909151692 | SCREW PLUGD | 5 | |
| 24 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909153271 | SEALING NUTD | 1 | ||
| R909156493 | NOZZLE | 2 | ||
| R909434080 | FLUSHING VALVE Assembly parts list →L | 1 | ||
| R909084302 | SEAL RINGD | 2 | ||
| 42 | R909831065 | TUBE FITTING | 1 | |
| 43 | R909831064 | THREADED FASTENER | 1 | |
| 98 | R902166536 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| Control device | Two-point control, U = 12 V electric with switching solenoid | EZ1 |
| Pressure cut-off | Pressure cut-off | D |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve | Without DA control valve | 1 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Splined shaft for single pump DIN 5480 | Z |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, same side right suction port S bottom | 10 |
| Boost pump | Without integrated boost pump without through drive | N |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve, pilot operated 100 … 420 bar with bypass | 1 |
| Filtration boost circuit/external boost pressure supply | External boost pressure supply (version without integrated boost pump – N00, K...) | E |
| Standard/special version | Special version | -S |
