Unit · AXIAL-PISTON PUMP
A8VO55LRDC+LRDC/60R1-PZG05G*SV*R909425196
Axial piston pump Bosch Rexroth series A8VO, type code A8VO55LRDC+LRDC/60R1-PZG05G*SV*, material number R909425196. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O).
- Number
- R909425196
- Type code
- A8VO55LRDC+LRDC/60R1-PZG05G*SV*
- Group
- A8VO 55
- Edition
- 06/2020

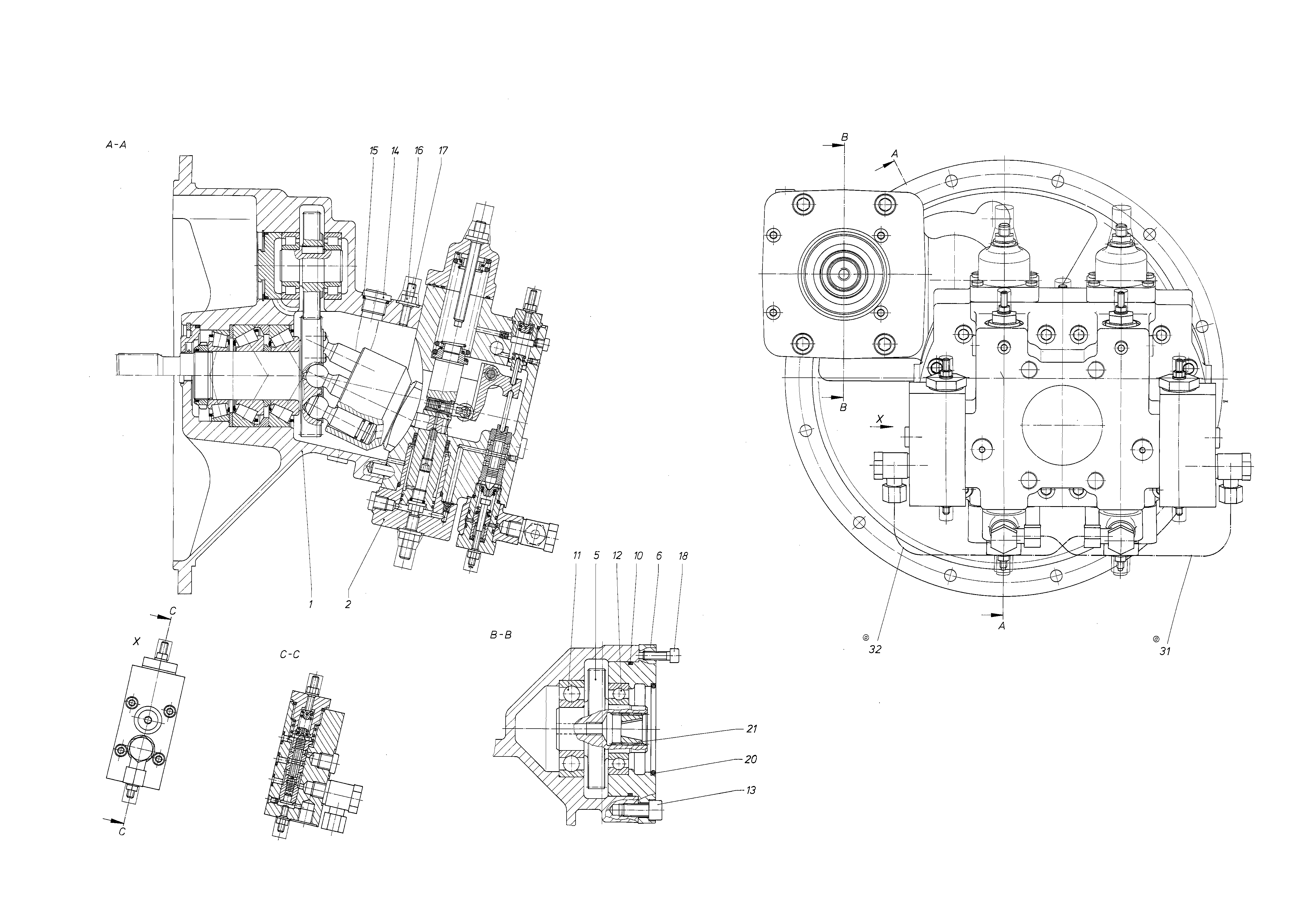

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909418511 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | |
| R909425197 | CONTROL Assembly parts list →L | 1 | ||
| 5 | R909417979 | TOOTHED WHEEL | 1 | |
| 6 | R909421678 | FLANGE | 1 | |
| 10 | R909152647 | O-RINGD | 1 | |
| 11 | R909085477 | DEEP-GROOVE BALL BEARING | 1 | |
| 12 | R909150668 | DEEP-GROOVE BALL BEARING | 1 | |
| R909083086 | SOCKET HEAD CAP SCREW | 4 | ||
| 14 | R909083225 | SCREW PLUG | 2 | |
| 15 | R909083758 | O-RINGD | 2 | |
| R909152707 | SEALING NUTD | 1 | ||
| R909084531 | SETSCREW | 1 | ||
| R909083038 | SOCKET HEAD CAP SCREW | 4 | ||
| R909086324 | O-RINGD | 1 | ||
| 21 | R909402724 | PINION | 1 | |
| R909442149 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909442150 | HYDRAULIC LINE Assembly parts list →L | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
