Unit · AXIAL-PISTON MOTOR
AA6VM80HA1/60W-PSD027A-SR909426140
Axial piston motor Bosch Rexroth series A6VM, type code AA6VM80HA1/60W-PSD027A-S, material number R909426140. Nominal size: NG 80. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Control device: automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar (HA1). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Working port: SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 (027). Beginning of control: at Vg min (standard for HA) (A). Standard/special version: special version (-S).
- Number
- R909426140
- Type code
- AA6VM80HA1/60W-PSD027A-S
- Group
- A6VM 80
- Edition
- 06/2020

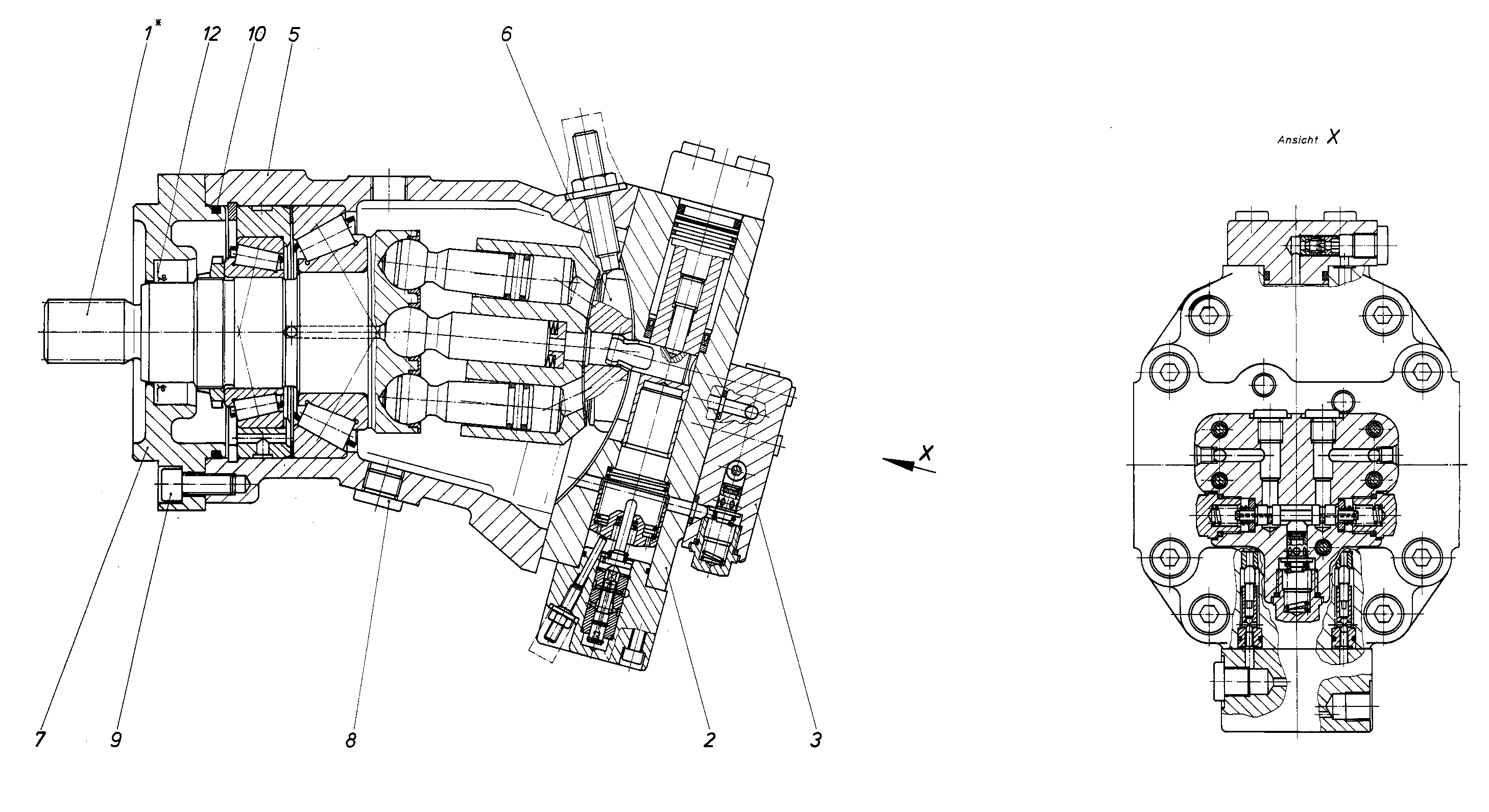

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414615 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909423587 | CONTROL Assembly parts list →L | 1 | ||
| R909426139 | FLUSHING VALVE Assembly parts list →L | 1 | ||
| R909414173 | HOUSING | 1 | ||
| R909921787 | CONTROL LENS | 1 | ||
| R909414115 | FLANGE | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 4 | ||
| R909152647 | O-RINGD | 1 | ||
| R909831178 | SHAFT SEALING RINGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 80 | 80 |
| Control device | Automatic control, high-pressure related with minimum pressure increase Δp ≤ approx. 10 bar | HA1 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Working port | SAE working ports A and B at side, opposite Flushing and boost-pressure valve, mounted 7 | 027 |
| Beginning of control | At Vg min (standard for HA) | A |
| Standard/special version | Special version | -S |
