Unit · AXIAL-PISTON PUMP
V-PUMPEAA7VTO28DR/60R-VSD51*G*R909427104

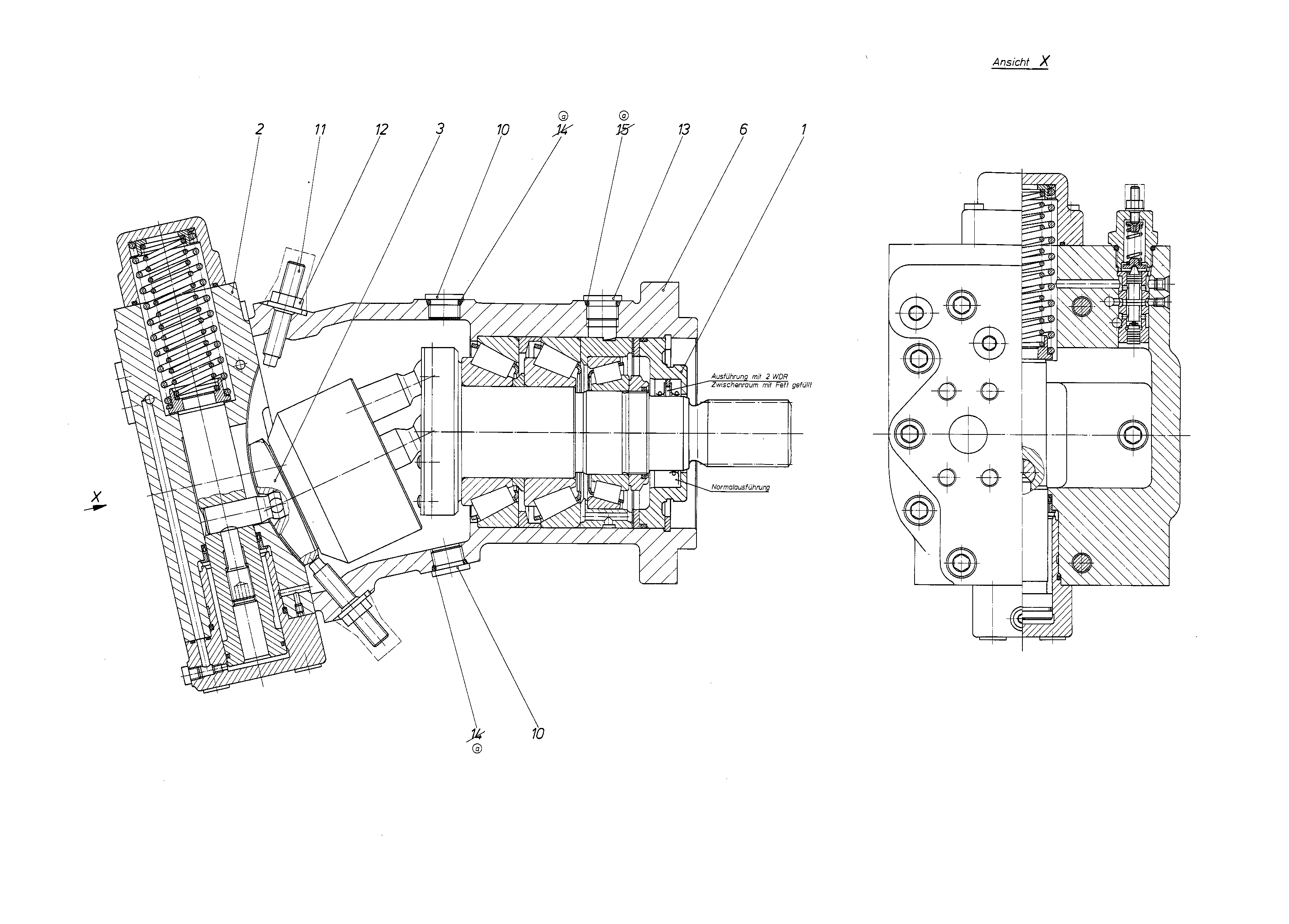

Axial piston pump Bosch Rexroth series A7VTO, type code V-PUMPEAA7VTO28DR/60R-VSD51*G*, material number R909427104.
- Number
- R909427104
- Type code
- V-PUMPEAA7VTO28DR/60R-VSD51*G*
- Group
- A7VTO 28
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909427120 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909427105 | CONTROL Assembly parts list →L | 1 | ||
| R909650447 | CONTROL LENS, RIGHT-HAND ROTATION | 1 | ||
| R909417154 | HOUSING | 1 | ||
| R910901969 | SCREW PLUG | 2 | ||
| 11 | R909153076 | SETSCREW | 2 | |
| R909152707 | SEALING NUTD | 2 | ||
| 13 | R910901969 | SCREW PLUG | 1 |
