Unit · AXIAL-PISTON PUMP
A4VG71DA1D2/30L+A4VG71NV1/30LR909427278
Axial piston pump Bosch Rexroth series A4VG, type code A4VG71DA1D2/30L+A4VG71NV1/30L, material number R909427278. Nominal size: NG 71. Axial piston unit: swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi (A4V). Operating mode: pump, closed circuit (G). Control device: automatic control, speed related U = 12 V (DA1). Pressure cut-off: pressure cut-off (D). DA control valve: DA control valve, fixed setting (2). Direction of rotation: viewed on drive shaft counter-clockwise (L).
- Number
- R909427278
- Type code
- A4VG71DA1D2/30L+A4VG71NV1/30L
- Group
- A4VG 71
- Edition
- 06/2020

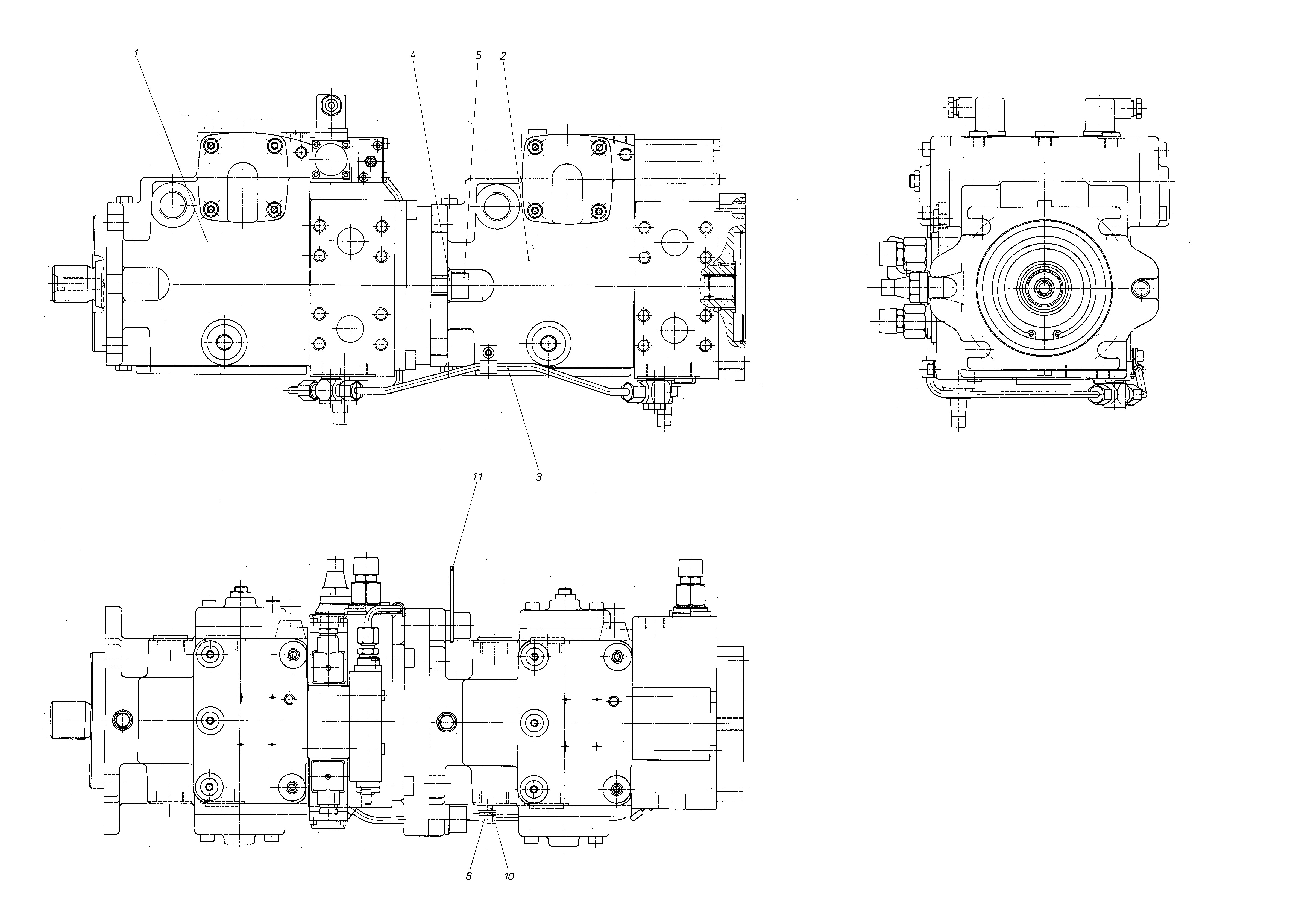

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909427279 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909427280 | AXIAL-PISTON PUMP Assembly parts list →L | 1 | ||
| R909430497 | HYDRAULIC LINE | 1 | ||
| R909430408 | WASHER | 2 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083019 | SOCKET HEAD CAP SCREW | 1 | ||
| R909408013 | ORIFICE | 1 | ||
| 8 | R909415185 | TUBE FITTING | 2 | |
| 9 | R909152737 | SEAL RINGD | 2 | |
| R909401201 | WASHER | 1 | ||
| R909430676 | STRAP | 1 | ||
| 98 | R902095774 | SEAL KIT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 5800 psi (400 bar), maximum pressure 6500 psi | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 71 | 71 |
| Control device | Automatic control, speed related U = 12 V | DA1 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | DA control valve, fixed setting | 2 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
