Unit · AXIAL-PISTON MOTOR
A6VE160DA/60W-427301R909427301
Axial piston motor Bosch Rexroth series A6VE, type code A6VE160DA/60W-427301, material number R909427301. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Operating mode: plug-in motor (E). Additional function 1: without additional function (0). Stroking time damping: damping One-sided in inlet to large stroking chamber (HA) (4).
- Number
- R909427301
- Type code
- A6VE160DA/60W-427301
- Group
- A6VE 160
- Edition
- 06/2020

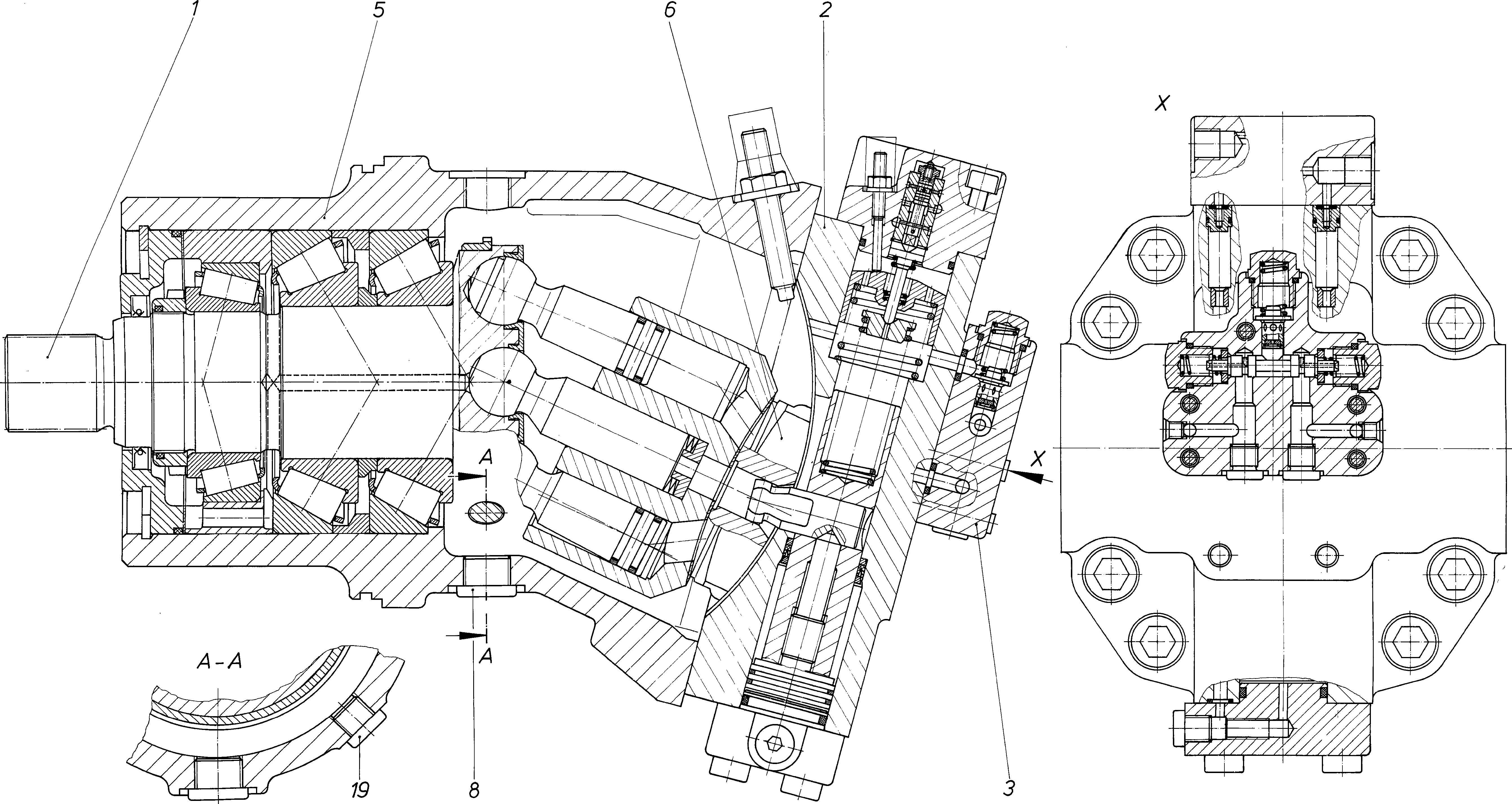

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909427266 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909427302 | CONTROL Assembly parts list →L | 1 | ||
| R909420889 | FLUSH/BOOST PRESSURE VALVE Assembly parts list →L | 1 | ||
| R909426536 | HOUSING | 1 | ||
| R909921790 | CONTROL LENS | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909153816 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Plug-in motor | E |
| Size (NG) | 160 | 160 |
| Additional function 1 | Without additional function | 0 |
| Stroking time damping | Damping One-sided in inlet to large stroking chamber (HA) | 4 |
| Setting range for displacement | 2730 | 2730 |
