Unit · AXIAL-PISTON PUMP
A8VO107/60R1-SO 27025.R909427838
Axial piston pump Bosch Rexroth series A8VO, type code A8VO107/60R1-SO27025., material number R909427838. Axial piston unit: bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar (A8V). Operating mode: double pump (parallel design), open circuit (O). Swivel angle indicator: without swivel angle indicator (0). Direction of rotation: viewed on drive shaft, right (R). Transmission ratio (ndrive / nrotary groups): i = 1 (1). Valves: without valves (only for the version without auxiliary pump, U) (0).
- Number
- R909427838
- Type code
- A8VO107/60R1-SO 27025.
- Group
- A8VO 107
- Edition
- 06/2020

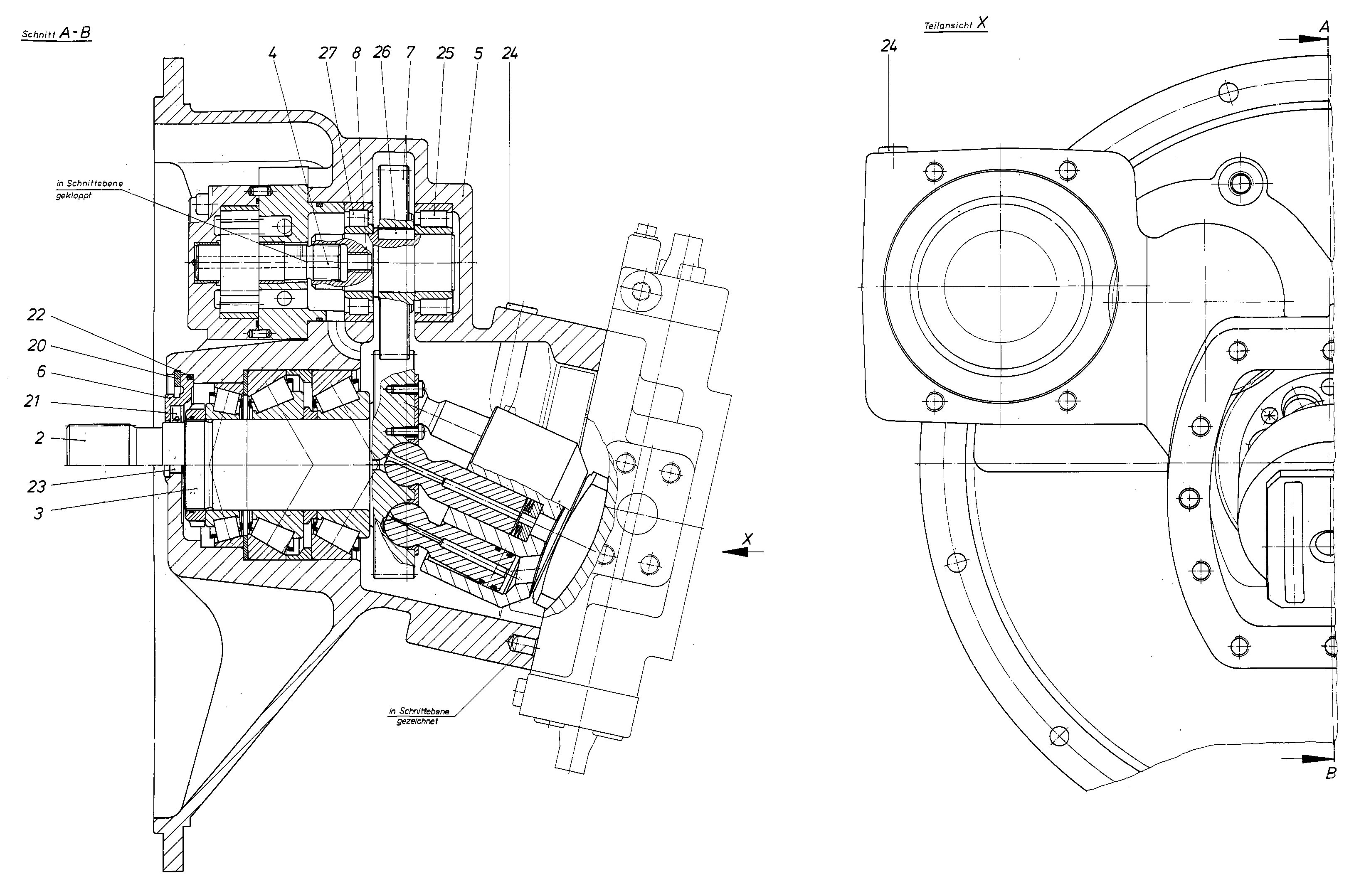

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909411736 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909411737 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909427813 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909430342 | PUMP HOUSING | 1 | ||
| R909652033 | LOCKING RING | 1 | ||
| R902110319 | TOOTHED WHEEL | 1 | ||
| R909430371 | PLUG-IN SHAFT | 1 | ||
| R909083418 | RETAINING RING | 1 | ||
| R909831233 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909084426 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 3 | ||
| R909156923 | CYL. ROLLER BEARING | 1 | ||
| R909157352 | PARALLEL KEY | 1 | ||
| R909153323 | CYL. ROLLER BEARING | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable, nominal pressure 380 bar, maximum pressure 420 bar | A8V |
| Operating mode | Double pump (parallel design), open circuit | O |
| Swivel angle indicator | Without swivel angle indicator | 0 |
| Direction of rotation | Viewed on drive shaft, right | R |
| Transmission ratio (ndrive / nrotary groups) | i = 1 | 1 |
| Valves | Without valves (only for the version without auxiliary pump, U) | 0 |
