Unit · AXIAL-PISTON MOTOR
A6VM28FOE/60W-VPB020BR909427901
Axial piston motor Bosch Rexroth series A6VM, type code A6VM28FOE/60W-VPB020B, material number R909427901. Nominal size: NG 28. Axial piston unit: bent-axis design, variable (A6V). Operating mode: motor (M). Direction of rotation: viewed on drive shaft variable (W). Sealing material: FKM (fluoroelastomer) (V). Drive shaft: parallel keyed shaft DIN 6885 (P). Mounting flange: ISO 3019-2 4-hole (B). Working port: SAE working ports Without valve 0 A and B at side, opposite 02 (020). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B).
- Number
- R909427901
- Type code
- A6VM28FOE/60W-VPB020B
- Group
- A6VM 28
- Edition
- 06/2020

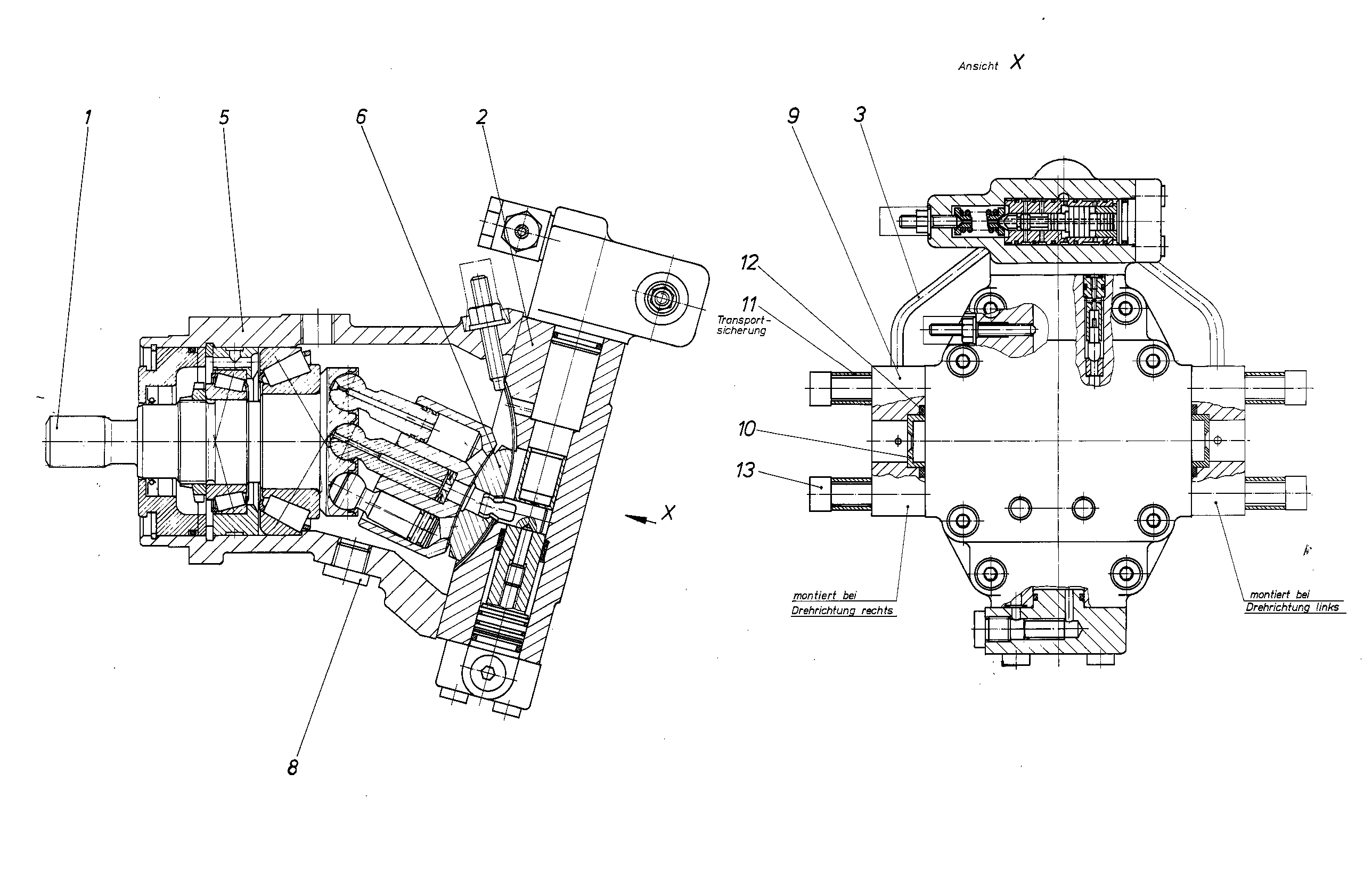

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438531 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909427594 | CONTROL Assembly parts list →L | 1 | ||
| R909427606 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 5 | R909420492 | HOUSING | 1 | |
| R909921785 | CONTROL LENS | 1 | ||
| 8 | R909156864 | SCREW PLUGD | 1 | |
| R909420531 | ORIFICE FLANGE | 1 | ||
| 10 | R909430426 | ORIFICE | 1 | |
| 11 | R909071215 | DISTANCE PIPE | 2 | |
| R909151882 | O-RINGD | 1 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 4 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Operating mode | Motor | M |
| Size (NG) | 28 | 28 |
| Direction of rotation | Viewed on drive shaft variable | W |
| Sealing material | FKM (fluoroelastomer) | V |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Mounting flange | ISO 3019-2 4-hole | B |
| Working port | SAE working ports Without valve 0 A and B at side, opposite 02 | 020 |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
