Unit · AXIAL-PISTON PUMP
A11VG50HW1/11R-PSC10K042ER909428255
Axial piston pump Bosch Rexroth series A11VO, type code A11VG50HW1/11R-PSC10K042E, material number R909428255. Nominal size: NG 50. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: splined shaft ANSI B92.1a‒1976 for single pump (S). Mounting flange: SAE J744 ‒ 2-hole (C). Through drive: 101-2 (B) 1 in 15T 16/32DP B-B (K04).
- Number
- R909428255
- Type code
- A11VG50HW1/11R-PSC10K042E
- Group
- A11VG 50
- Edition
- 06/2020

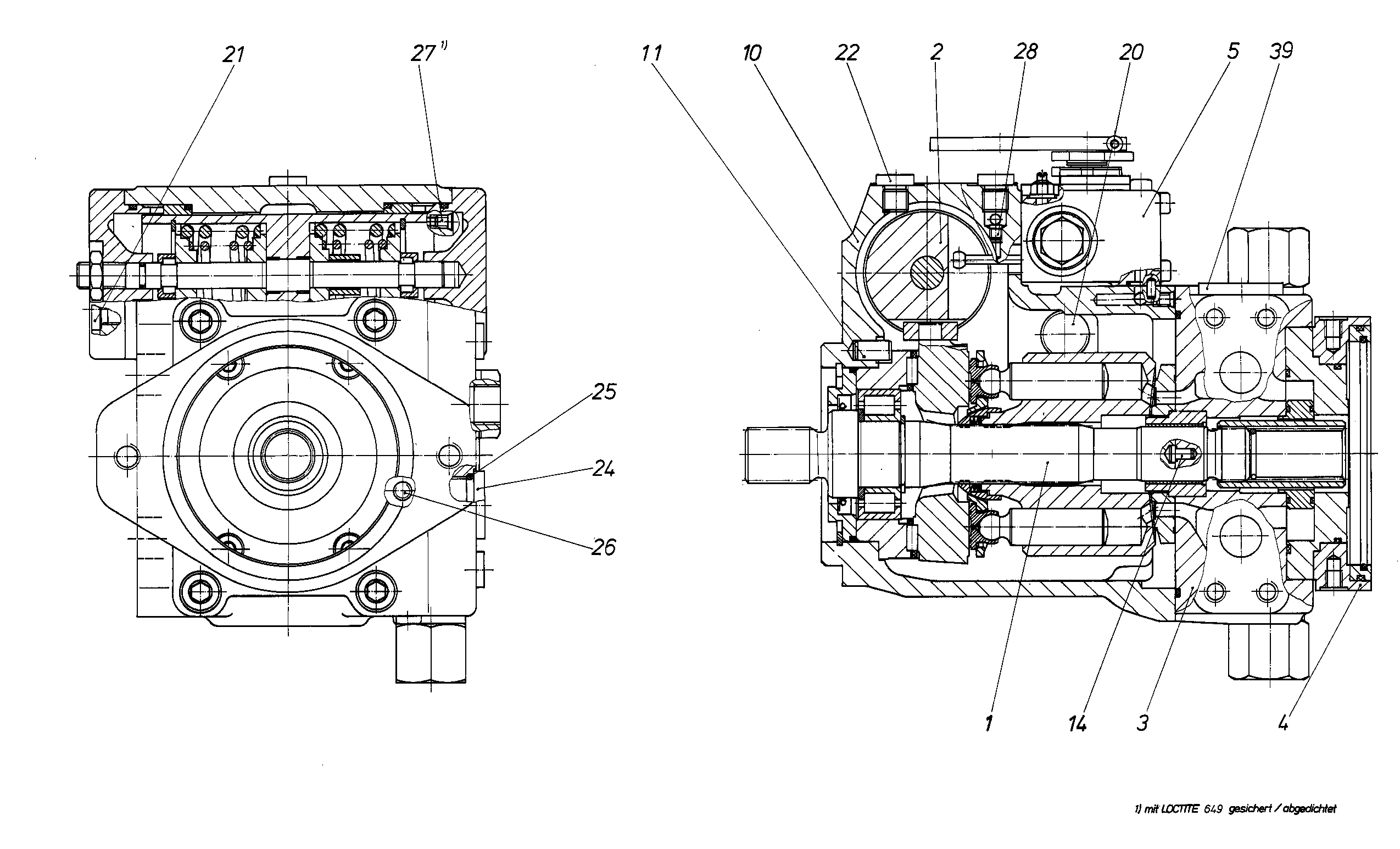

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429854 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909437420 | CONTROL Assembly parts list →L | 1 | ||
| R909441072 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909447972 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909428666 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909440183 | HOUSING | 1 | ||
| R909430641 | POITIONING PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| R909084400 | SCREW PLUG | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| 46 | R909154981 | SETSCREW | 1 | |
| 47 | R909153271 | SEALING NUTD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 50 | 50 |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Splined shaft ANSI B92.1a‒1976 for single pump | S |
| Mounting flange | SAE J744 ‒ 2-hole | C |
| Through drive | 101-2 (B) 1 in 15T 16/32DP B-B | K04 |
