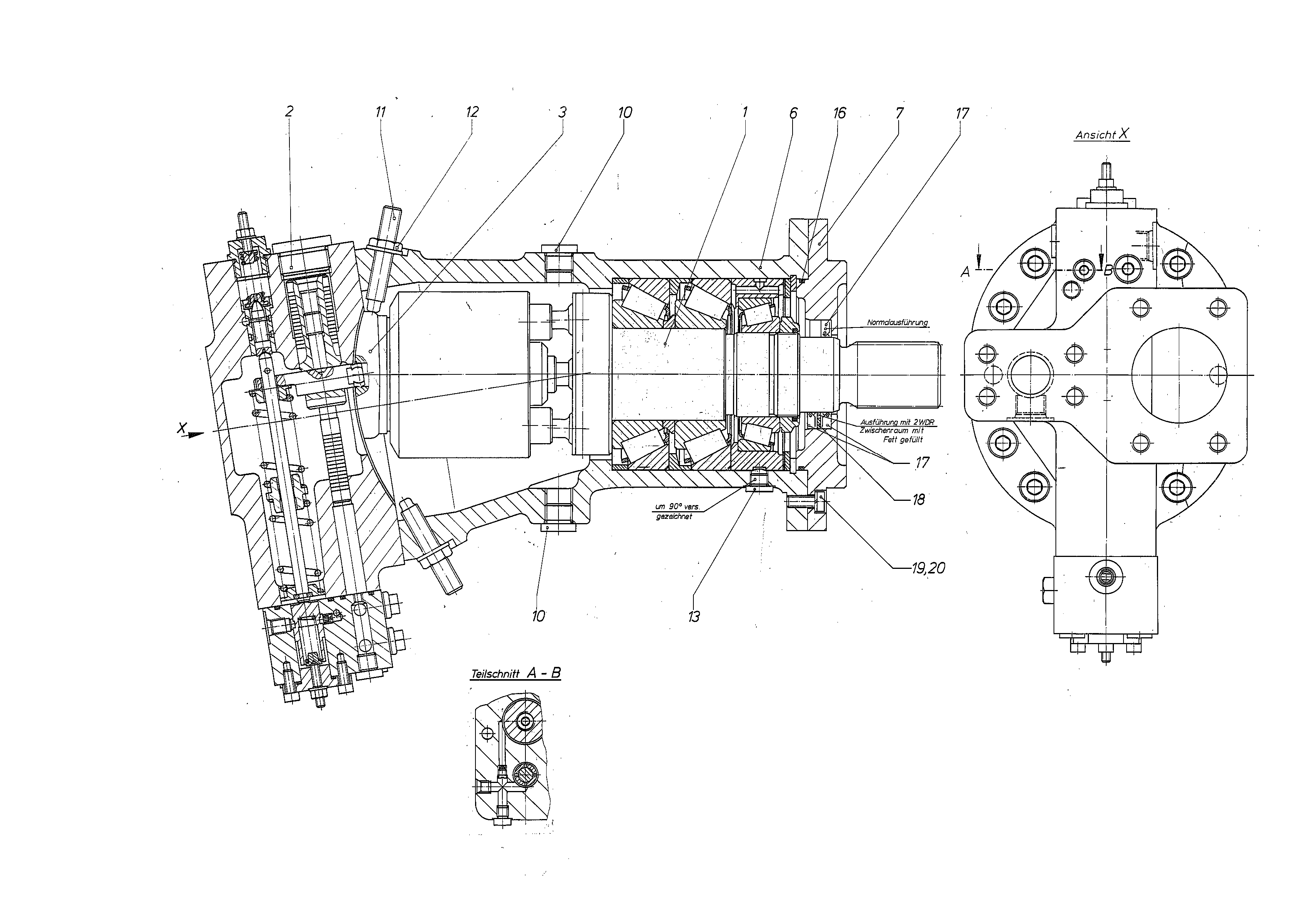

Unit · AXIAL-PISTON PUMP
V-PUMPEAA7V160HD2.0LZH00*G*R909429185
Axial piston pump Bosch Rexroth series A7V, type code V-PUMPEAA7V160HD2.0LZH00*G*, material number R909429185.
- Number
- R909429185
- Type code
- V-PUMPEAA7V160HD2.0LZH00*G*
- Group
- A7V 160
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414289 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909418137 | CONTROL Assembly parts list →L | 1 | |
| R909071676 | CONTROL LENS, LEFT-HAND ROTATION | 1 | ||
| R909414292 | HOUSING | 1 | ||
| R909414293 | FLANGE | 1 | ||
| R909153339 | SCREW PLUGD | 2 | ||
| 11 | R909153075 | SETSCREW | 2 | |
| R909152459 | SEALING NUTD | 2 | ||
| 13 | R909153371 | SCREW PLUGD | 2 | |
| R909085929 | O-RINGD | 1 | ||
| R909831662 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083190 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083250 | SPRING LOCK WASHER | 4 |
