Unit · AXIAL-PISTON PUMP

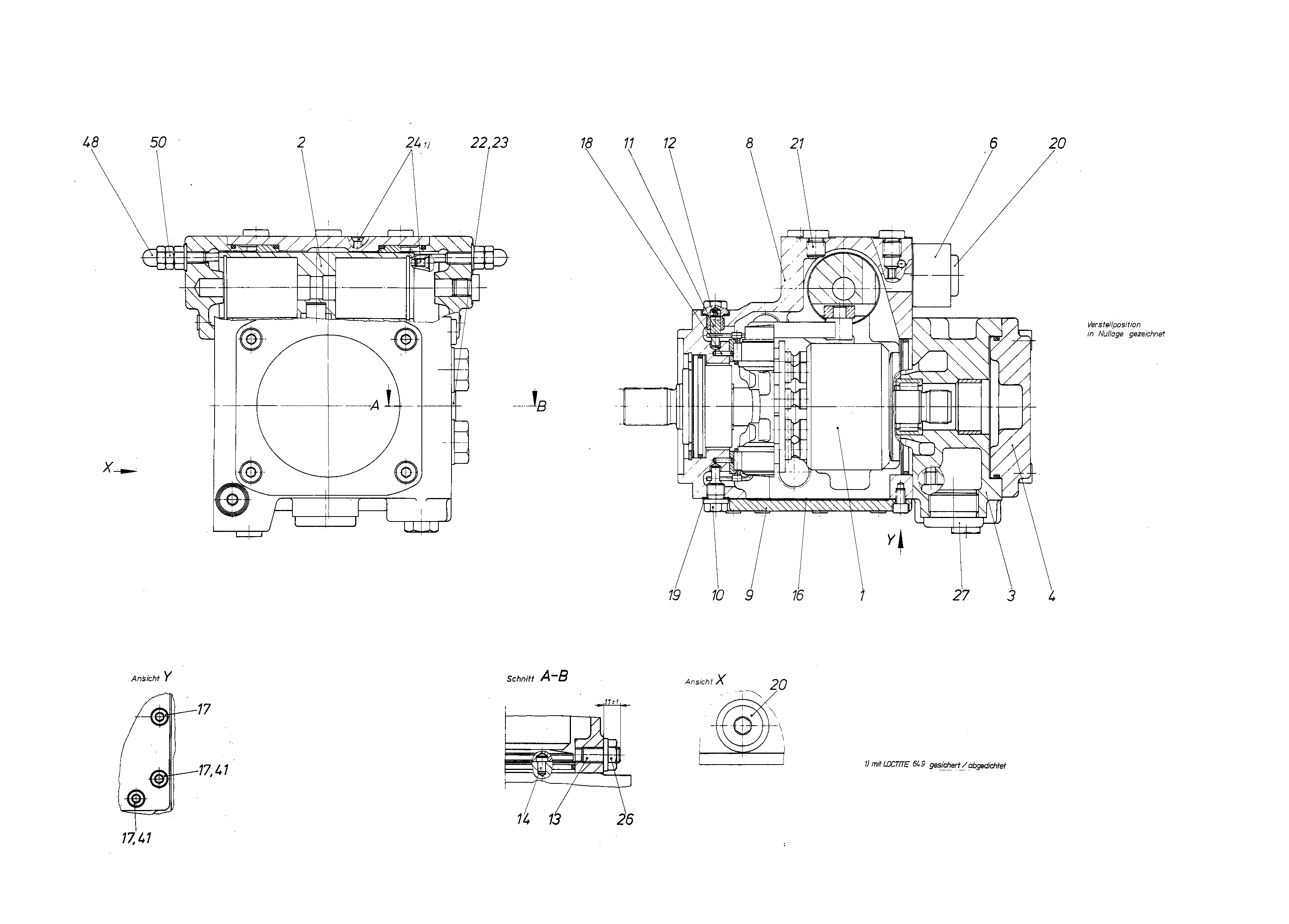

A4VG28NVM1/30L-VSC10N00XXR909429292
Axial piston pump Bosch Rexroth series A4VG, type code A4VG28NVM1/30L-VSC10N00XX, material number R909429292. Nominal size: NG 28. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Mechanical stroke limiter: mechanical stroke limiter, externally adjustable (M). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: splined shaft for single pump ANSI B92.1a (S). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, same side right suction port S bottom (10). Boost pump: without integrated boost pump without through drive (N). Through drive: without through drive, only for version N and F (00).
- Number
- R909429292
- Type code
- A4VG28NVM1/30L-VSC10N00XX
- Group
- A4VG 28
- Edition
- 06/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909434319 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909600893 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909429343 | CONNECTION PLATE Assembly parts list →L | 1 | |
| R909429293 | COVER Assembly parts list →L | 1 | ||
| R909429254 | COVER Assembly parts list →L | 1 | ||
| R909426341 | HOUSING | 1 | ||
| 9 | R909426076 | HOUSING COVER | 1 | |
| 10 | R909414228 | SCREW PLUG | 2 | |
| 11 | R909449291 | PIVOT PIN | 2 | |
| 13 | R909154981 | SETSCREW | 1 | |
| R909418748 | ECCENTRIC BOLT | 1 | ||
| R909435277 | SEALD | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 11 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909152726 | SEAL RINGD | 2 | ||
| R909151694 | SCREW PLUGD | 4 | ||
| 21 | R909151692 | SCREW PLUGD | 5 | |
| R909084400 | SCREW PLUG | 1 | ||
| R909152694 | O-RINGD | 1 | ||
| 24 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909153271 | SEALING NUTD | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909152271 | SEAL RINGD | 2 | ||
| R909086182 | CAP NUT | 2 | ||
| R909083612 | HEXAGON NUT | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 28 | 28 |
| Mechanical stroke limiter | Mechanical stroke limiter, externally adjustable | M |
| DA control valve | Without DA control valve | 1 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Splined shaft for single pump ANSI B92.1a | S |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, same side right suction port S bottom | 10 |
| Boost pump | Without integrated boost pump without through drive | N |
| Through drive | Without through drive, only for version N and F | 00 |
