Unit · AXIAL-PISTON MOTOR
A6VE160HZ/60W-PZL080B-SR909429793
Axial piston motor Bosch Rexroth series A6VM, type code A6VE160HZ/60W-PZL080B-S, material number R909429793. Nominal size: NG 160. Axial piston unit: bent-axis design, variable (A6V). Control device: two-point control, hydraulic (HZ). Direction of rotation: viewed on drive shaft variable (W). Drive shaft: parallel keyed shaft DIN 6885 (P). Beginning of control: at Vg max (standard for HD, HZ, EP, EZ, DA) (B). Standard/special version: special version (-S).
- Number
- R909429793
- Type code
- A6VE160HZ/60W-PZL080B-S
- Group
- A6VE 160
- Edition
- 06/2020

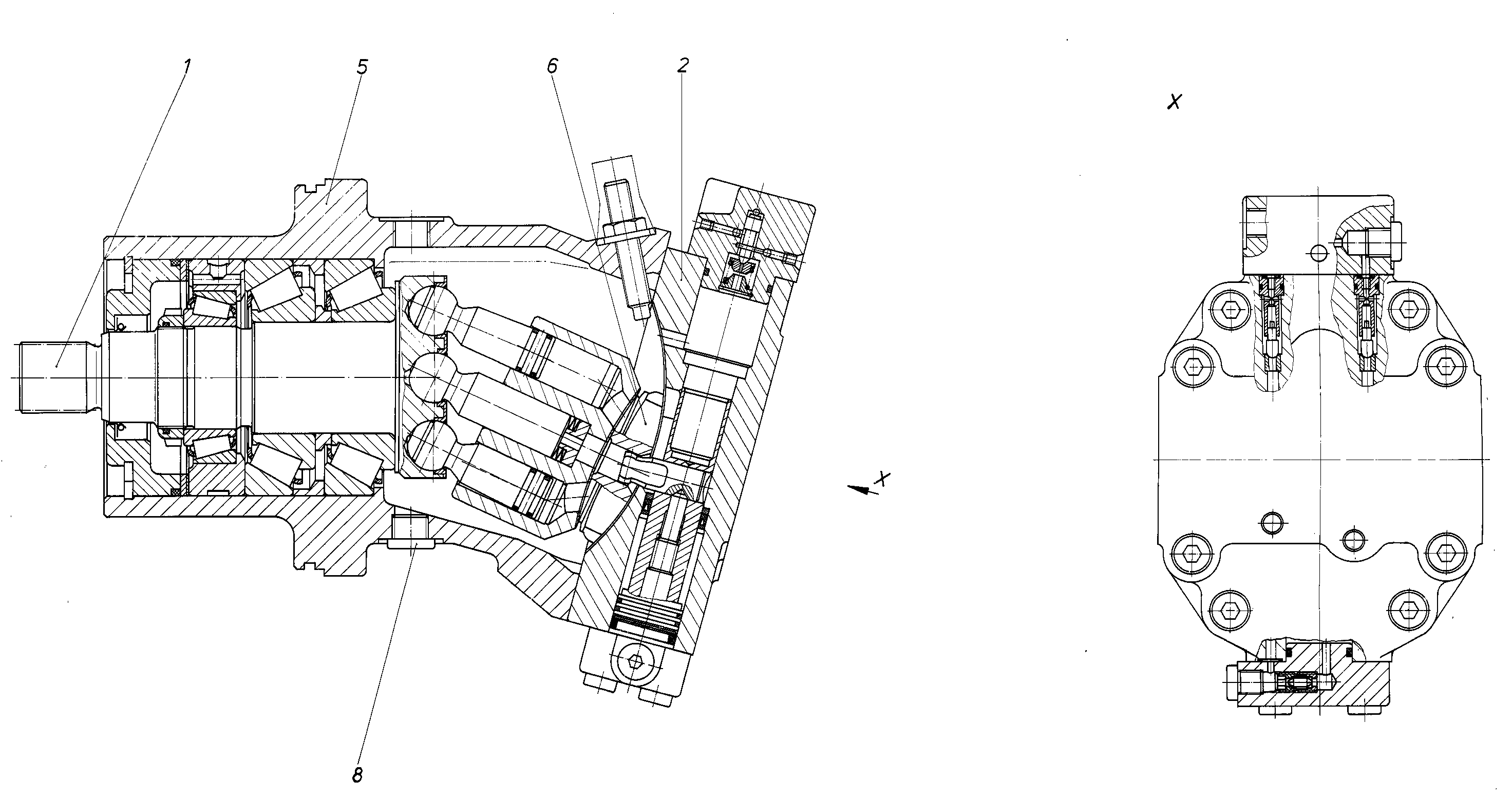

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909428084 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909429794 | CONTROL Assembly parts list →L | 1 | ||
| R909430329 | HOUSING | 1 | ||
| R909921790 | CONTROL LENS | 1 | ||
| R909151694 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Bent-axis design, variable | A6V |
| Size (NG) | 160 | 160 |
| Control device | Two-point control, hydraulic | HZ |
| Direction of rotation | Viewed on drive shaft variable | W |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Beginning of control | At Vg max (standard for HD, HZ, EP, EZ, DA) | B |
| Standard/special version | Special version | -S |
