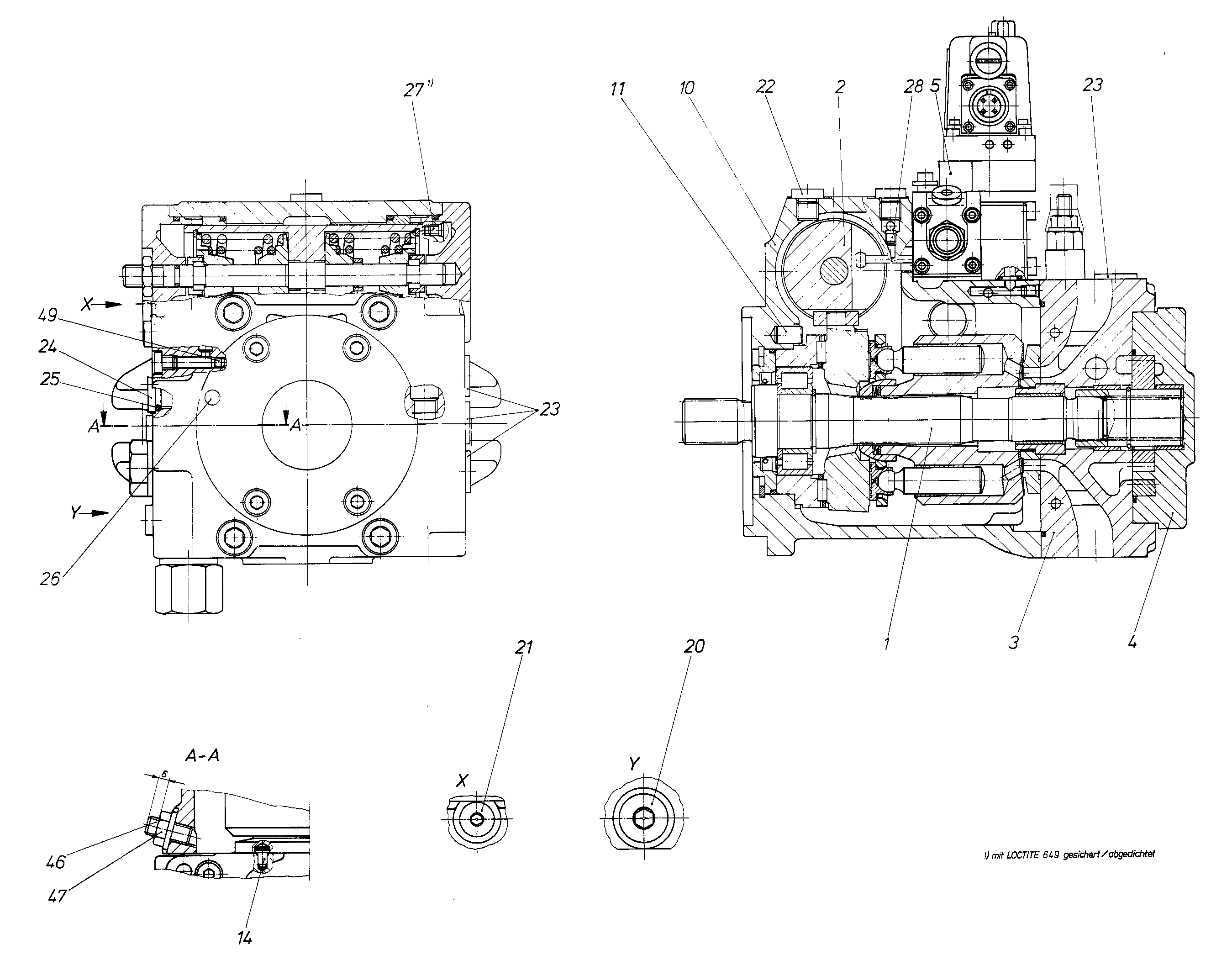

Unit · AXIAL-PISTON PUMP
A4VG40ESD1/31L-PUC02F003SR909433046
Axial piston pump Bosch Rexroth series A4VG, type code A4VG40ESD1/31L-PUC02F003S, material number R909433046. Nominal size: NG 40. Axial piston unit: swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar (A4V). Operating mode: pump, closed circuit (G). Pressure cut-off: pressure cut-off (D). DA control valve: without DA control valve (1). Direction of rotation: viewed on drive shaft counter-clockwise (L). Drive shaft: splined shaft ANSI B92.1a only for combination pump – 2nd pump (U). Mounting flange: SAE J744 2-hole (C). Working port (port plate): SAE working port A and B, top and bottom suction port S bottom (02). Boost pump: integrated boost pump with and without through drive (F). Through drive: without through drive, only for version N and F (00). High-pressure relief valve Setting range ∆pHD: high-pressure relief valve 250 … 420 bar without bypass direct operated, fixed setting (3). Filtration boost circuit/external boost pressure supply: filtration in the boost pump suction line (S).
- Number
- R909433046
- Type code
- A4VG40ESD1/31L-PUC02F003S
- Group
- A4VG 40
- Edition
- 02/2020
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429848 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909437420 | CONTROL Assembly parts list →L | 1 | ||
| R909438930 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902080171 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | ||
| R909434877 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909440183 | HOUSING | 1 | ||
| R909430641 | POITIONING PIN | 1 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 4 | ||
| R909153815 | SCREW PLUGD | 4 | ||
| R909084400 | SCREW PLUG | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909156493 | NOZZLE | 2 | ||
| R909154981 | SETSCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| R909156497 | NOZZLE | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 400 bar, maximum pressure 450 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 40 | 40 |
| Pressure cut-off | Pressure cut-off | D |
| DA control valve | Without DA control valve | 1 |
| Direction of rotation | Viewed on drive shaft counter-clockwise | L |
| Drive shaft | Splined shaft ANSI B92.1a only for combination pump – 2nd pump | U |
| Mounting flange | SAE J744 2-hole | C |
| Working port (port plate) | SAE working port A and B, top and bottom suction port S bottom | 02 |
| Boost pump | Integrated boost pump with and without through drive | F |
| Through drive | Without through drive, only for version N and F | 00 |
| High-pressure relief valve Setting range ∆pHD | High-pressure relief valve 250 … 420 bar without bypass direct operated, fixed setting | 3 |
| Filtration boost circuit/external boost pressure supply | Filtration in the boost pump suction line | S |
