Unit · AXIAL-PISTON PUMP
A11VG50HW1/11R-PXC10F002S-SR909433271
Axial piston pump Bosch Rexroth series A11VO, type code A11VG50HW1/11R-PXC10F002S-S, material number R909433271. Nominal size: NG 50. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R). Drive shaft: parallel keyed shaft DIN 6885 (P). Standard/special version: special version (S).
- Number
- R909433271
- Type code
- A11VG50HW1/11R-PXC10F002S-S
- Group
- A11VG 50
- Edition
- 06/2020

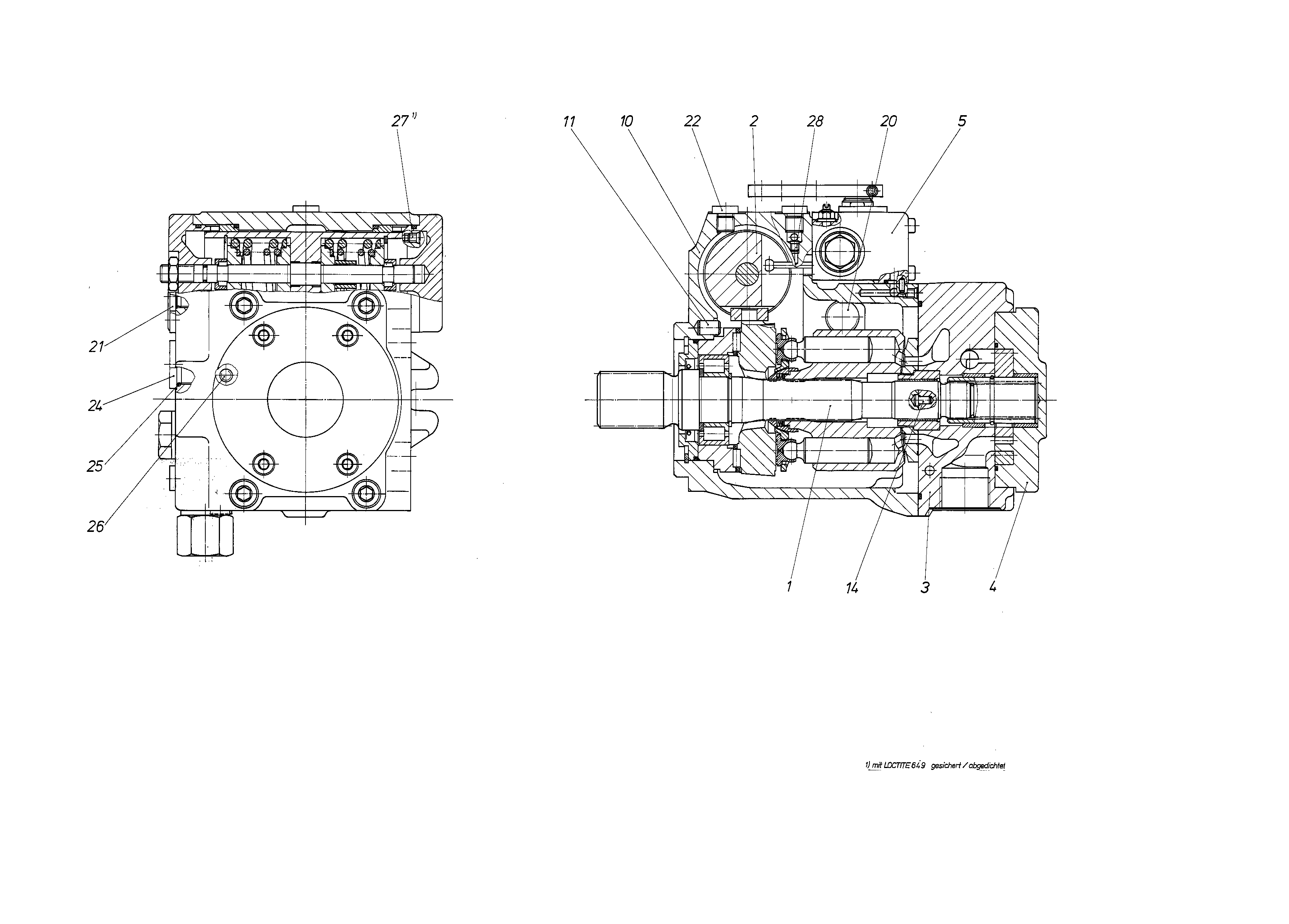

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429852 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909437420 | CONTROL Assembly parts list →L | 1 | |
| 3 | R909441070 | CONNECTION PLATE Assembly parts list →L | 1 | |
| 4 | R902080171 | INTERNAL GEAR PUMP Assembly parts list →L | 1 | |
| 5 | R909427744 | CONTROL MODULE Assembly parts list →L | 1 | |
| R909440577 | HOUSING | 1 | ||
| 11 | R909430641 | POITIONING PIN | 1 | |
| R909405732 | POITIONING PIN | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909151692 | SCREW PLUGD | 3 | ||
| 24 | R909084400 | SCREW PLUG | 1 | |
| R909083761 | O-RINGD | 1 | ||
| R909153572 | SCREW PLUG | 1 | ||
| 27 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909156493 | NOZZLE | 2 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 50 | 50 |
| Index | Size 145 … 260 | 1 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
| Drive shaft | Parallel keyed shaft DIN 6885 | P |
| Standard/special version | Special version | S |
