Unit · ROTARY GROUP
20119.0R909433333

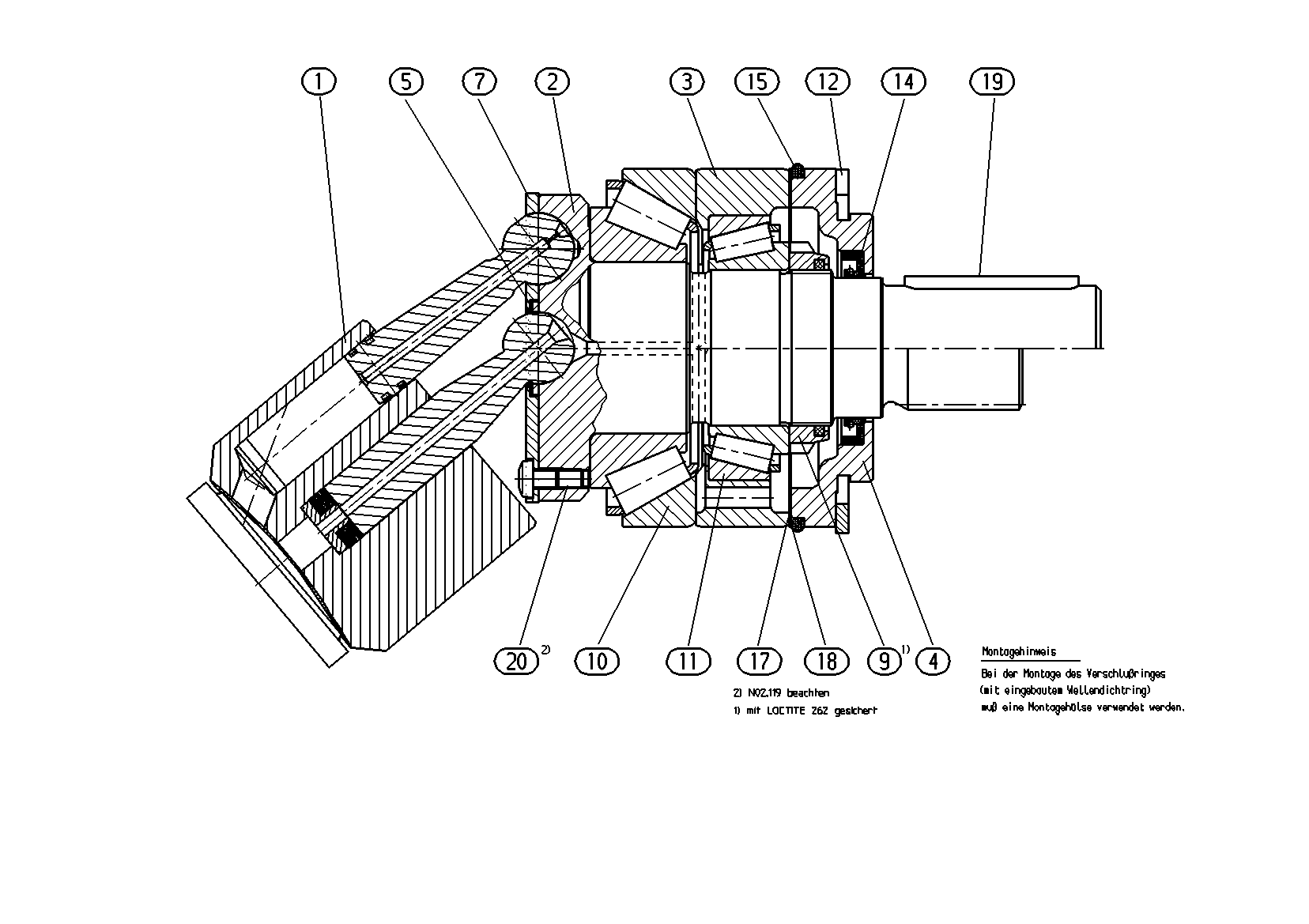

Rotary group Bosch Rexroth, type code 20119.0, material number R909433333.
- Number
- R909433333
- Type code
- 20119.0
- Group
- ROTARY GROUP
- Edition
- 01/2022
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909442883 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909432160 | DRIVE SHAFT | 1 | ||
| R909430090 | BEARING RING | 1 | ||
| 4 | R909409976 | LOCKING RINGD | 1 | |
| 5 | R909408492 | WASHER | 1 | |
| 7 | R909439986 | RETAINING PLATE | 1 | |
| R913037930 | SLOTTED ROUND NUT | 1 | ||
| R909154398 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154399 | TAPERED-ROLLER BEARING | 1 | |
| R909085128 | RETAINING RING | 1 | ||
| R909831179 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909086008 | O-RINGD | 1 | ||
| R909156275 | SHIM RING | 2 | ||
| 18 | R909156276 | SHIM RING | 1 | |
| R902603054 | PAN-HEAD SCREW | 7 |
