Unit · AXIAL-PISTON PUMP
A11VG12EP11/10R-433454*G*R909433454
Axial piston pump Bosch Rexroth series A11VO, type code A11VG12EP11/10R-433454*G*, material number R909433454. Nominal size: NG 12. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Direction of rotation: viewed on drive shaft clockwise (R).
- Number
- R909433454
- Type code
- A11VG12EP11/10R-433454*G*
- Group
- A11VG 12
- Edition
- 06/2020

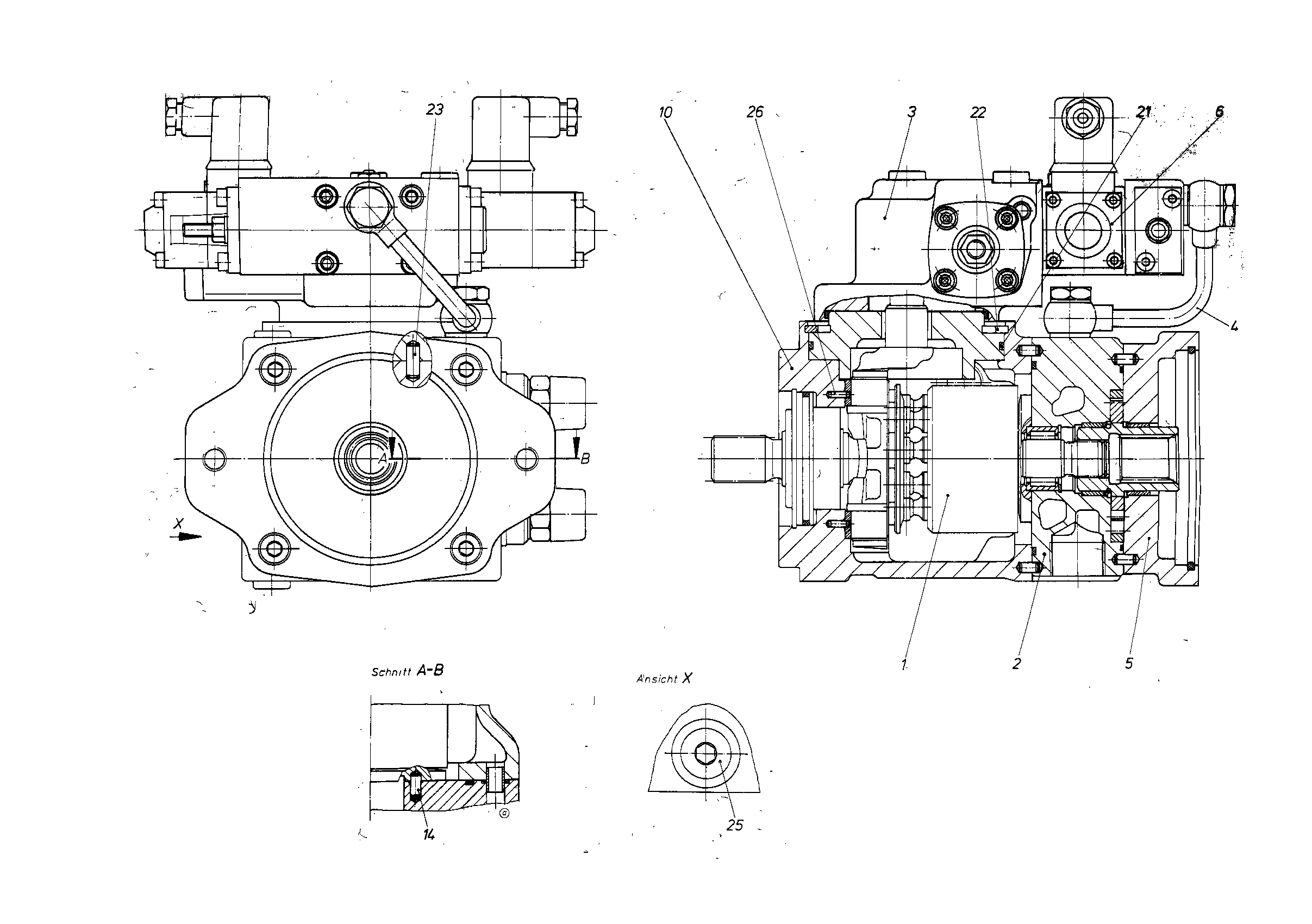

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438516 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909429700 | CONNECTION PLATE Assembly parts list →L | 1 | |
| 3 | R909434565 | CONTROL Assembly parts list →L | 1 | |
| R909433453 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| 5 | R909421140 | INTERNAL GEAR PUMP ASSEMBLY Assembly parts list →L | 1 | |
| 6 | R909405585 | CONTROL UNIT Assembly parts list →L | 1 | |
| R909431063 | HOUSING | 1 | ||
| 14 | R913009664 | STRAIGHT PIN | 1 | |
| 21 | R909086495 | O-RINGD | 1 | |
| R909157169 | RETAINING RING | 1 | ||
| R913009677 | STRAIGHT PIN | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909150772 | SLOTTED SPRING PIN | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Size (NG) | 12 | 12 |
| Index | Size 40 … 130 | 0 |
| Direction of rotation | Viewed on drive shaft clockwise | R |
