Unit · AXIAL-PISTON PUMP
A4VG56EP2D1+A4VG28EZ2D1R909433928
Axial piston pump Bosch Rexroth series A4VG, type code A4VG56EP2D1+A4VG28EZ2D1, material number R909433928. Nominal size: NG 56. Axial piston unit: swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar (A4V). Operating mode: pump, closed circuit (G). Control device: proportional control, electric U = 24 V (EP2). Pressure cut-off: pressure cut-off, with bypass Fixed setting, hydraulic, mechanical (D).
- Number
- R909433928
- Type code
- A4VG56EP2D1+A4VG28EZ2D1
- Group
- A4VG 56
- Edition
- 06/2020

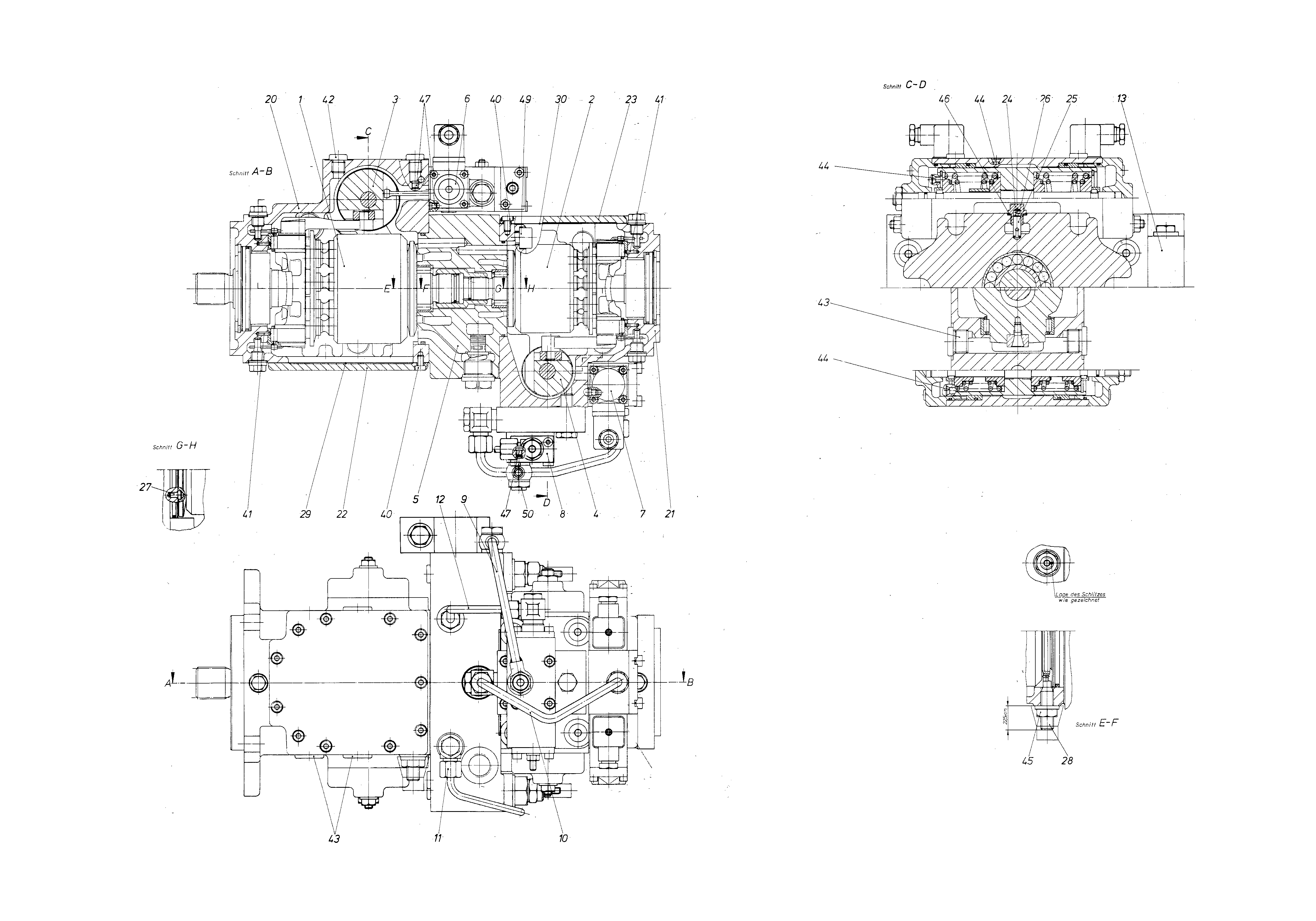

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909413435 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909434316 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909600901 | CONTROL Assembly parts list →L | 1 | ||
| R909434072 | CONTROL Assembly parts list →L | 1 | ||
| R909416244 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R909600985 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909433896 | DIRECTIONAL-CONTROL VALVE Assembly parts list →L | 1 | ||
| R909423222 | UNLOADING VALVE Assembly parts list →L | 1 | ||
| R909416902 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909416904 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909416906 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909416908 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909417176 | FLUSHING VALVE Assembly parts list →L | 1 | ||
| R909440311 | HOUSING | 1 | ||
| R909426342 | HOUSING | 1 | ||
| R909435160 | HOUSING COVER | 1 | ||
| R909426076 | HOUSING COVER | 1 | ||
| R909414228 | SCREW PLUG | 4 | ||
| R909449291 | PIVOT PIN | 4 | ||
| R909405732 | POITIONING PIN | 1 | ||
| R909408932 | ECCENTRIC SCREW | 1 | ||
| R909443919 | SEALD | 1 | ||
| R909435277 | SEALD | 1 | ||
| R909083018 | SOCKET HEAD CAP SCREW | 22 | ||
| R913016373 | SLOTTED SPRING PIN | 4 | ||
| R909151692 | SCREW PLUGD | 9 | ||
| R909151694 | SCREW PLUGD | 7 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909087405 | SEALING NUTD | 1 | ||
| R909152726 | SEAL RINGD | 4 | ||
| R909156492 | NOZZLE | 4 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 4 | ||
| R909153364 | SCREW PLUGD | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 450 bar, maximum pressure 500 bar | A4V |
| Operating mode | Pump, closed circuit | G |
| Size (NG) | 56 | 56 |
| Control device | Proportional control, electric U = 24 V | EP2 |
| Pressure cut-off | Pressure cut-off, with bypass Fixed setting, hydraulic, mechanical | D |
