Unit · AXIAL-PISTON PUMP
AA11VO200LRDH6/10R-442028*G*R909442028
Axial piston pump Bosch Rexroth series A11VO, type code AA11VO200LRDH6/10R-442028*G*, material number R909442028. Nominal size: NG 200. Axial piston unit: swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar (A11V). Operating mode: pump, open circuit without charge pump (O). Control device: power controller fixed setting, with pressure cut-off (LRD). Swivel angle indicator: with electric swivel angle sensor (R).
- Number
- R909442028
- Type code
- AA11VO200LRDH6/10R-442028*G*
- Group
- A11VO 200
- Edition
- 06/2020

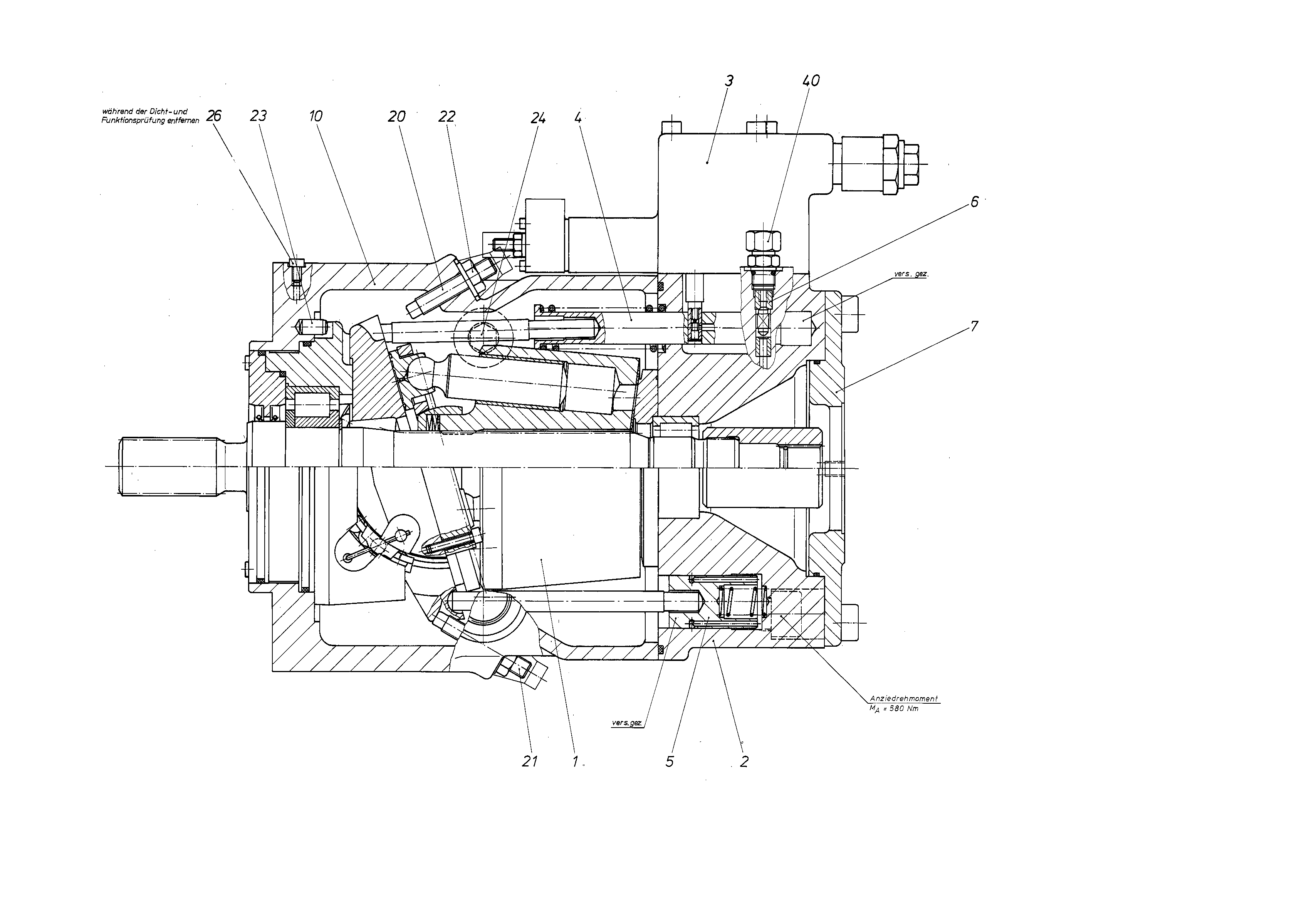

| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909441449 | ROTARY GROUP Assembly parts list →L | 1 | |
| R909438678 | CONNECTION PLATE, RL Assembly parts list →L | 1 | ||
| R909442691 | REGULATOR Assembly parts list →L | 1 | ||
| R909437659 | CONTROL Assembly parts list →L | 1 | ||
| R909434737 | CONTROL Assembly parts list →L | 1 | ||
| 6 | R902220058 | SHUTTLE VALVE Assembly parts list →L | 1 | |
| R909442550 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909432679 | HOUSING | 1 | ||
| 20 | R909083530 | SETSCREW | 1 | |
| R909085976 | SETSCREW | 1 | ||
| R909152459 | SEALING NUTD | 2 | ||
| R913009671 | STRAIGHT PIN | 1 | ||
| R909153378 | SCREW PLUGD | 1 | ||
| 26 | R909086465 | SOCKET HEAD CAP SCREW | 1 |
Parameters from the type code
| Item | Meaning | Code |
|---|---|---|
| Axial piston unit | Swashplate design, variable, nominal pressure 350 bar, maximum pressure 400 bar | A11V |
| Operating mode | Pump, open circuit without charge pump | O |
| Size (NG) | 200 | 200 |
| Control device | Power controller fixed setting, with pressure cut-off | LRD |
| Index | Size 145 … 260 | 1 |
| Swivel angle indicator | With electric swivel angle sensor | R |
